TY-LED-20RL/INS/NG

TY-LED-20RL/INS/NG

Category:SPD for LED

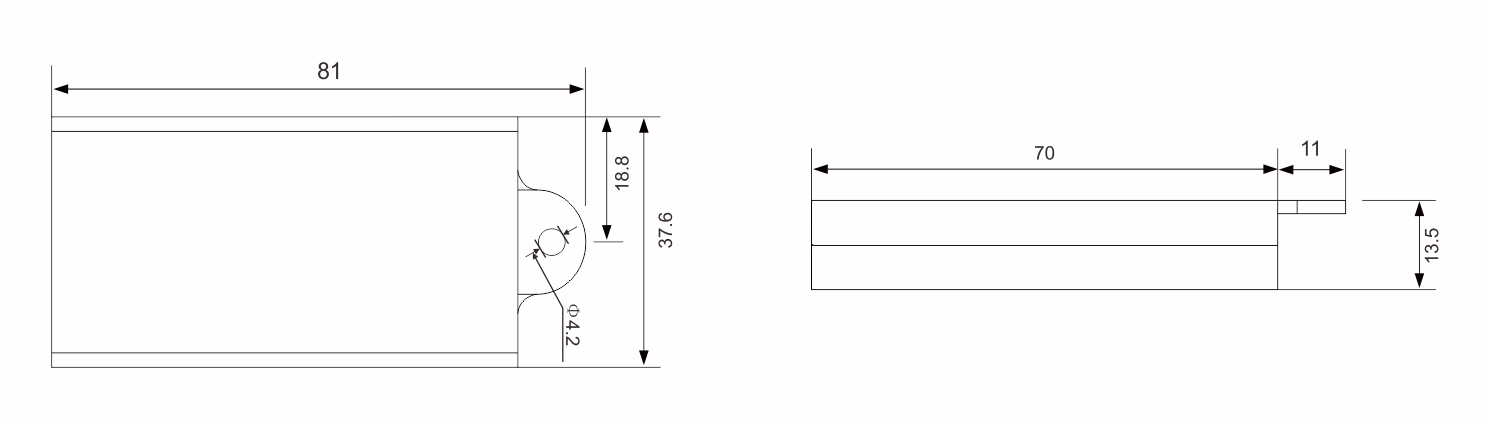

20kA LED street light surge protector

Tel:+86-577-62605321
Email:andy.xu@chtaike.com.cn
PDF Download

Features:

Advanced structure, simple installation, easy maintenance

The max. lightning protection current is 20kA

Type 2+3 surge protector

High discharge capacity, long service life

Parameters:

Model


TY-LED-20RL/INS/NG

SPD classification according to EN61643-11


Type 2+3

SPD classification according to IEC61643-11


Class II+III

Nominal a.c. voltage Un 230V

Max. continuous operating a.c. voltage

Uc

275V

Frequency

50-60Hz

Nominal discharge current(8/20μs)

In

5kA

Max. discharge current(8/20μs)

Imax

20kA

Nominal current
IL 10A

Voltage protection level

Up

≤1.3kV

Response time

tA

≤100ns

Operating temperature range

Tu

-40℃-80℃

Operating state / fault indication


Non / red

Section of cables


1.5mm²

Length of cables


110mm/150mm

Degree of protection


IP65

Application:

It can be used in the surge protection of street lighting (Class2, Class3), landscape lighting and other commercial lighting power supplies, as well as the surge protection of power ports such as security, electrical appliances and sockets.

It is often used in the lampshade and control cabinet of LED light

Installation and Maintenance:

Parallel connection

Before installation, cut off the power supply.

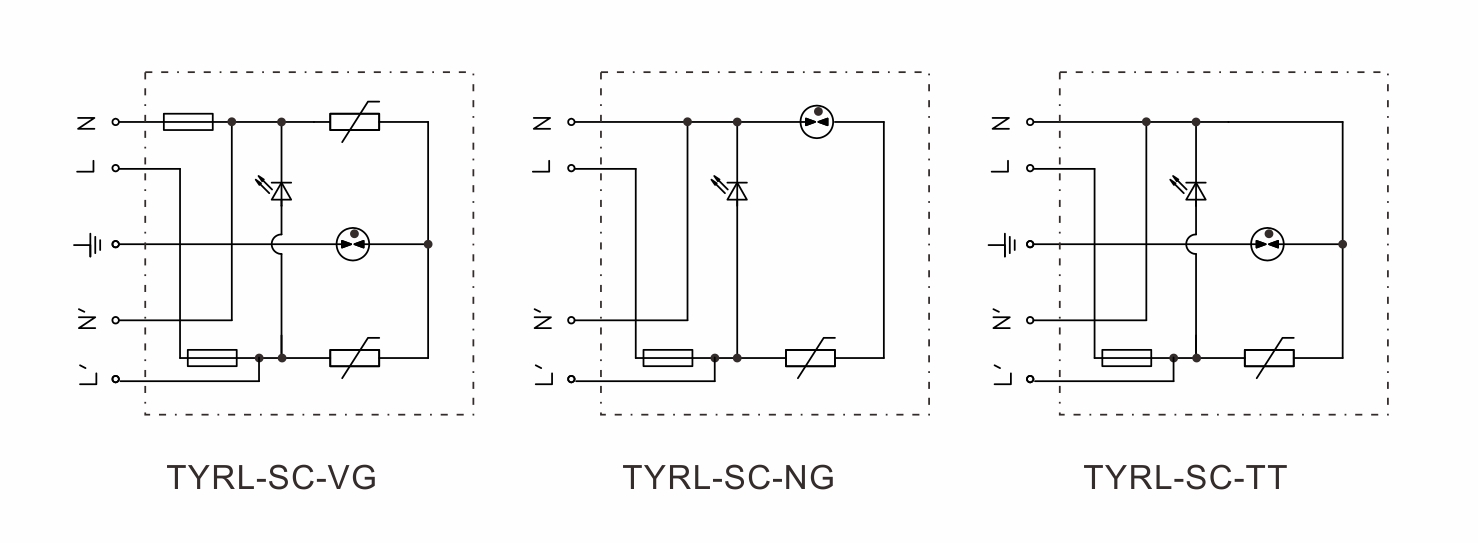

Please connect according to the installation diagram

During the use of the lightning protection device, it is necessary to regularly check whether the working indicator is normal. If the indicator fails, it should be repaired or replaced in time.
