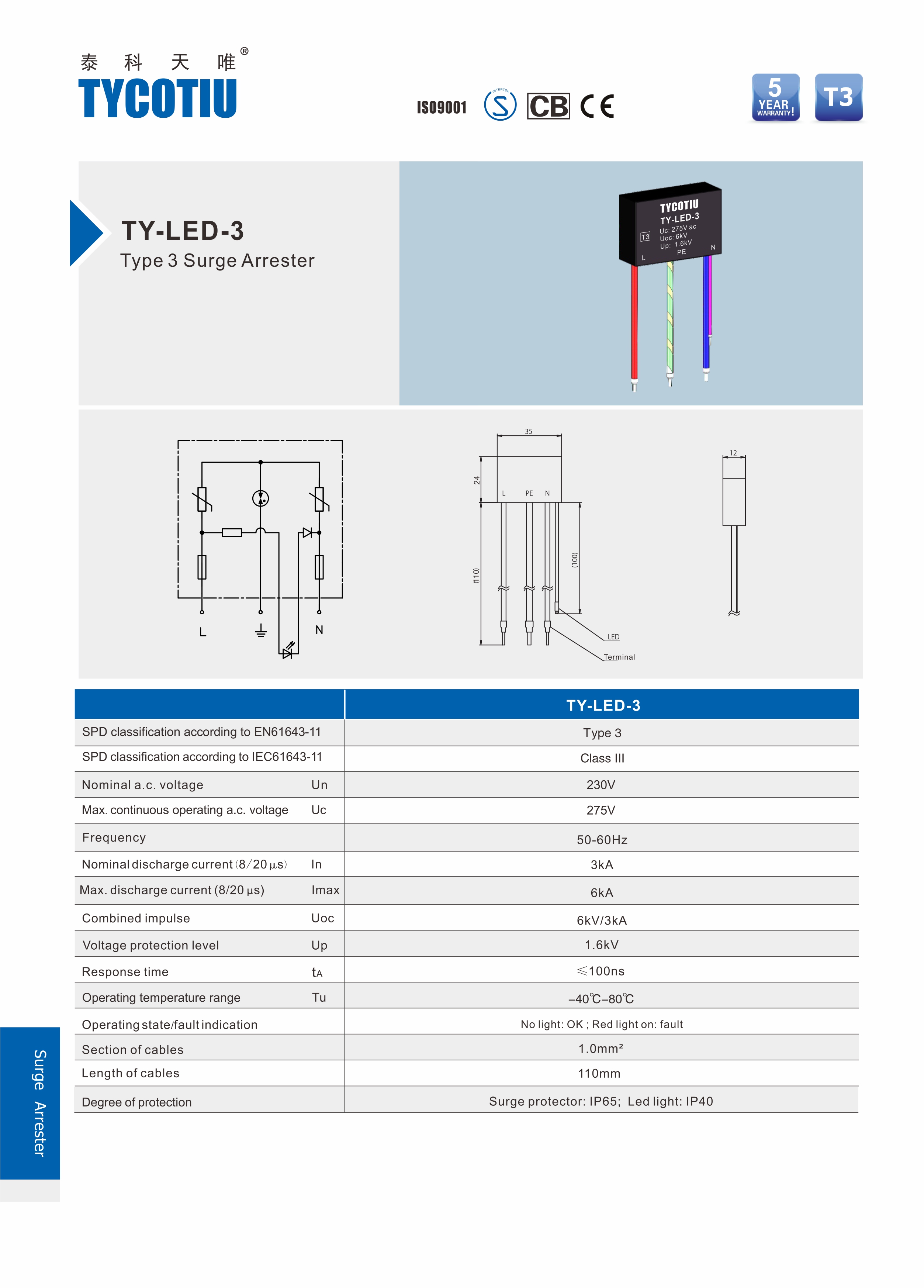

TY-LED-3
Category:SPD for LED
6kA LED surge protector
Tel:+86-577-62605321
Email:andy.xu@chtaike.com.cn
PDF Download
Features:
Good lightning protection performance
The max. lightning protection current is 6kA
Meet the lightning protection requirements of the LED power system
High capacity, low residual voltage, fast response time
Parameters:
Model
TY-LED-3
SPD classification according to EN61643-11
Type 3
SPD classification according to IEC61643-11
Class III
Max. continuous operating a.c. voltage
Uc
275V
Nominal discharge current(8/20μs)
In
3kA
Max. discharge current(8/20μs)
Imax
6kA
Voltage protection level
Up
≤1.6kV
Response time
tA
≤100ns
Operating temperature range
Tu
-40℃-80℃
Operating state / fault indication
Non / red
Section of cables
1mm²

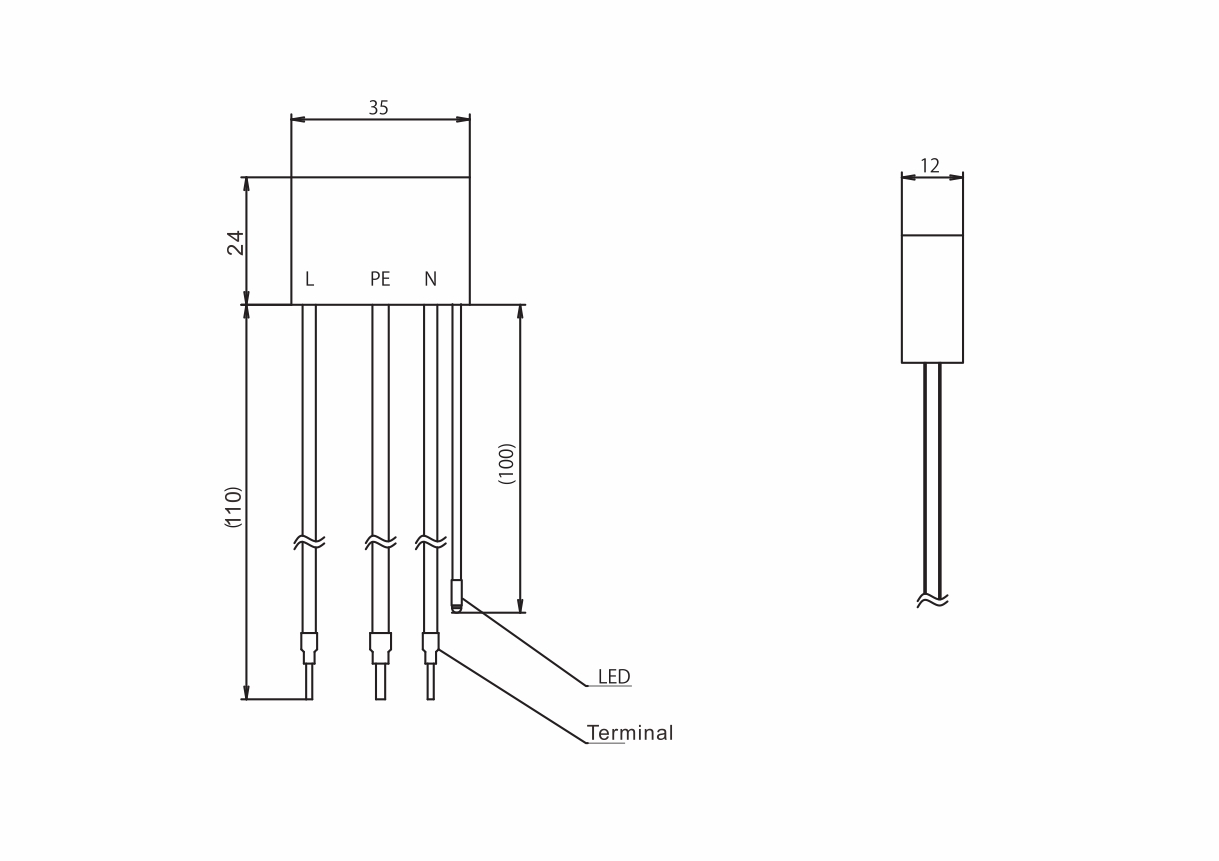

Length of cables
110mm
Degree of protection
Surge protector: IP65; Led light: IP40
Nominal a.c. voltage
Un
230V
Frequency
50-60Hz
Combined impulse
Uoc
6kV
Application:
Used for lightning protection of LED street lamp equipment
It is often used in the lampshade and control cabinet of LED light
Installation and Maintenance:
Products shall be installed by authorized professionals. The power supply must be disconnected during installation.

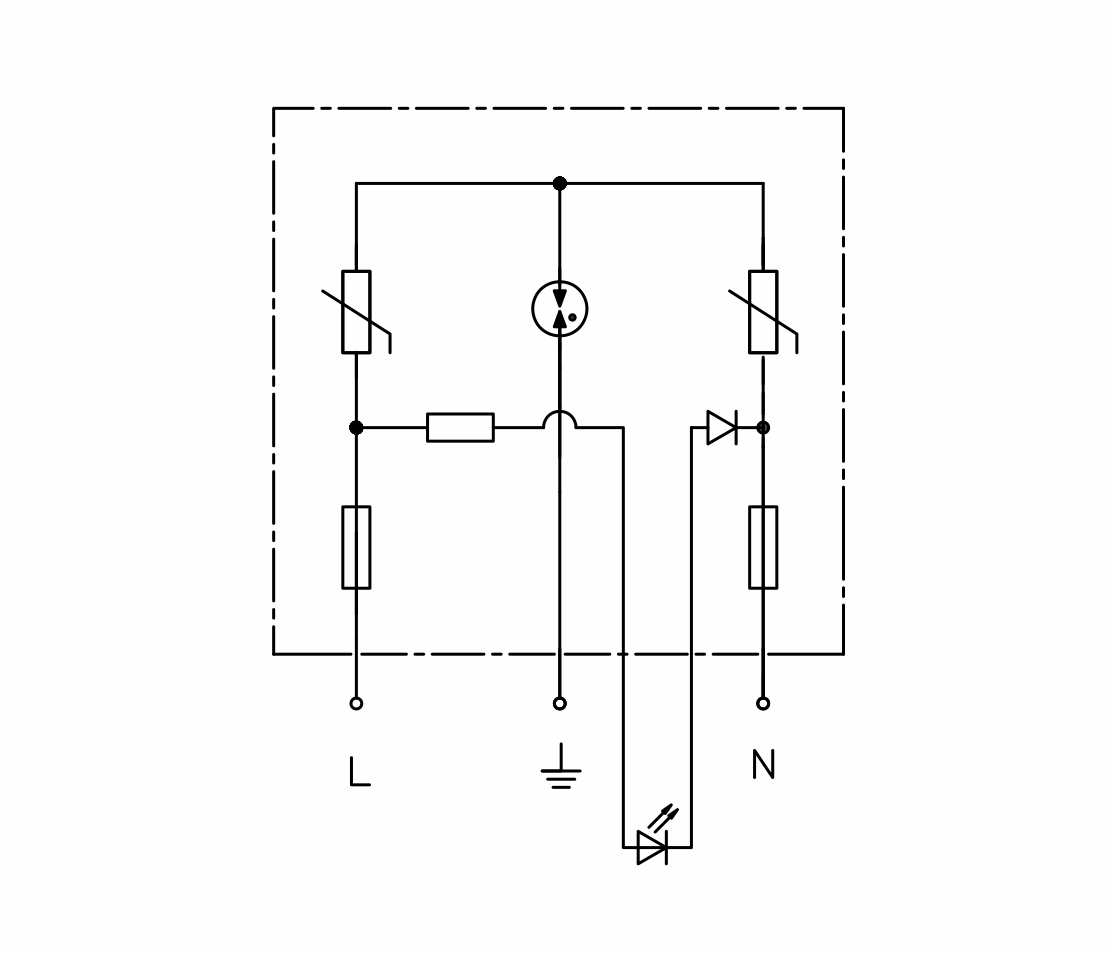

Please connect according to the installation diagram
During the use of the lightning protection device, it is necessary to regularly check whether the working indicator is normal. If the indicator fails, it should be repaired or replaced in time.
