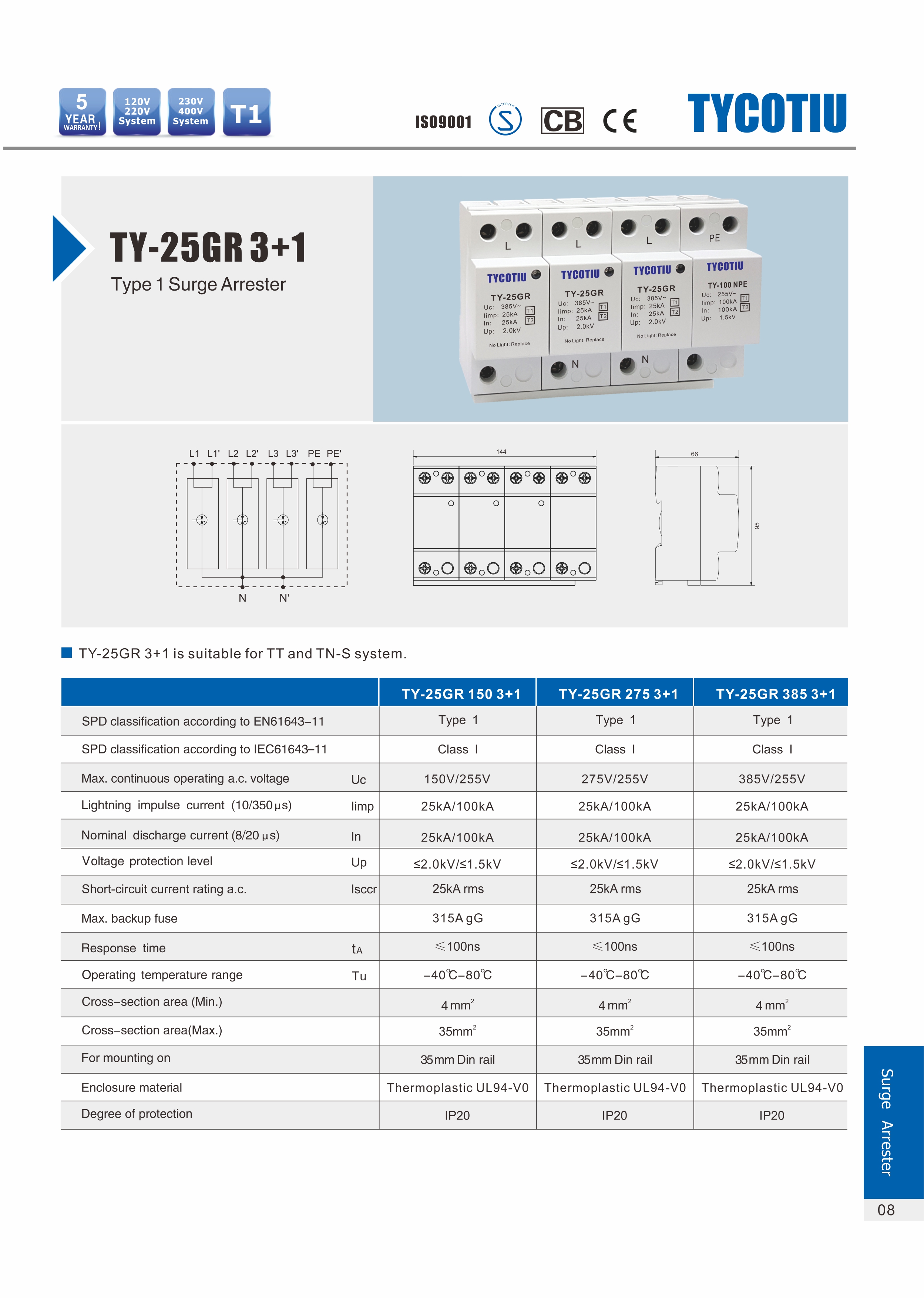

TY-25GR 3+1

TY-25GR 3+1

Category:T1 surge protector( 10/350µs)

Type 1 Surge Protector 25kA 3+1

Tel:+86-577-62605321
Email:andy.xu@tycotiu.com
PDF Download

Features:

Type 1 surge arrester.
IP20 protection level
Impulse current limp(10/350μs):25kA
35mm Din rail mounting
Status indication: red (fault)
Cross-section area:4mm²—35mm²
Operating temperature range: -40℃—80℃
Comply with EN 61643-11 / IEC 61643-11.

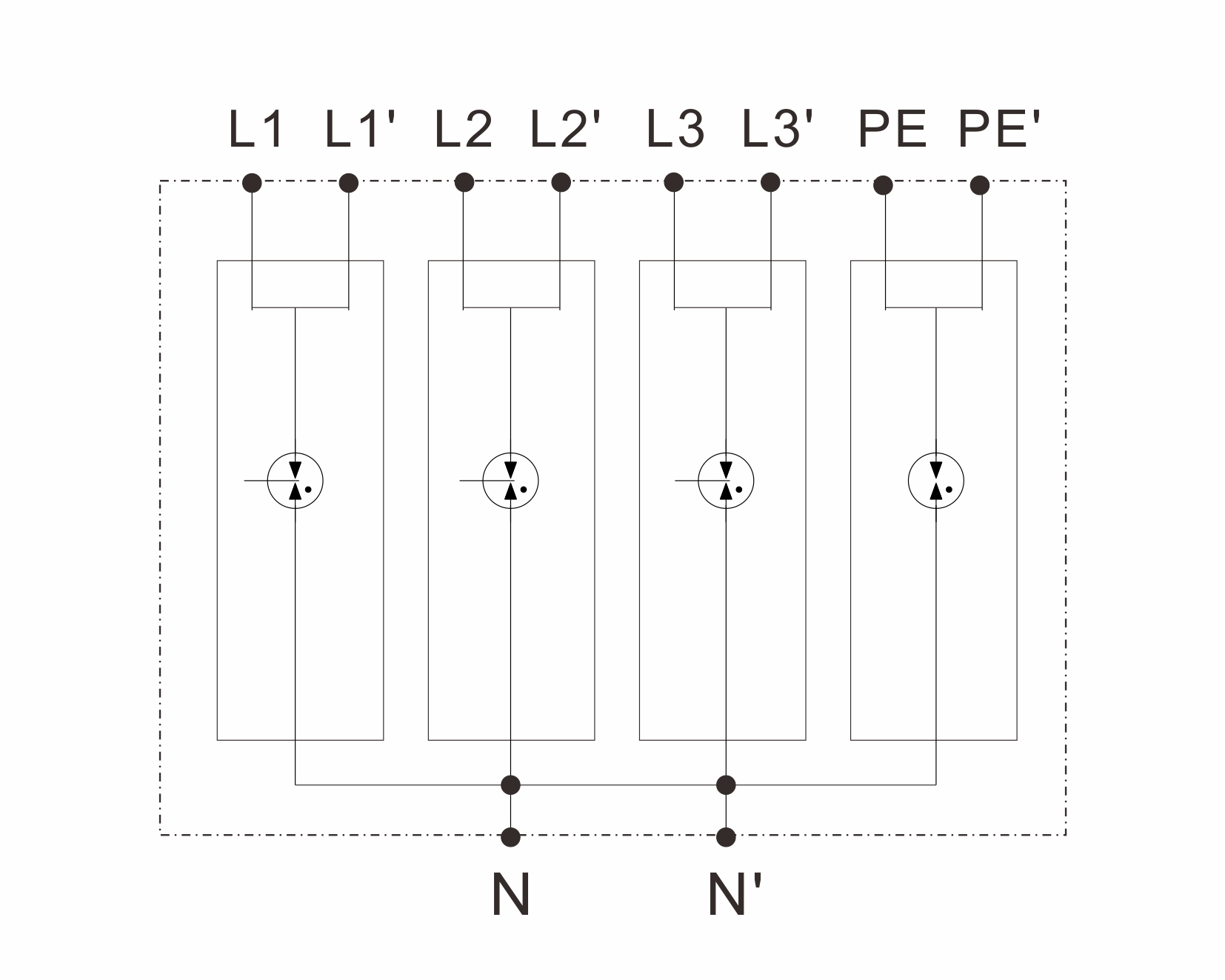

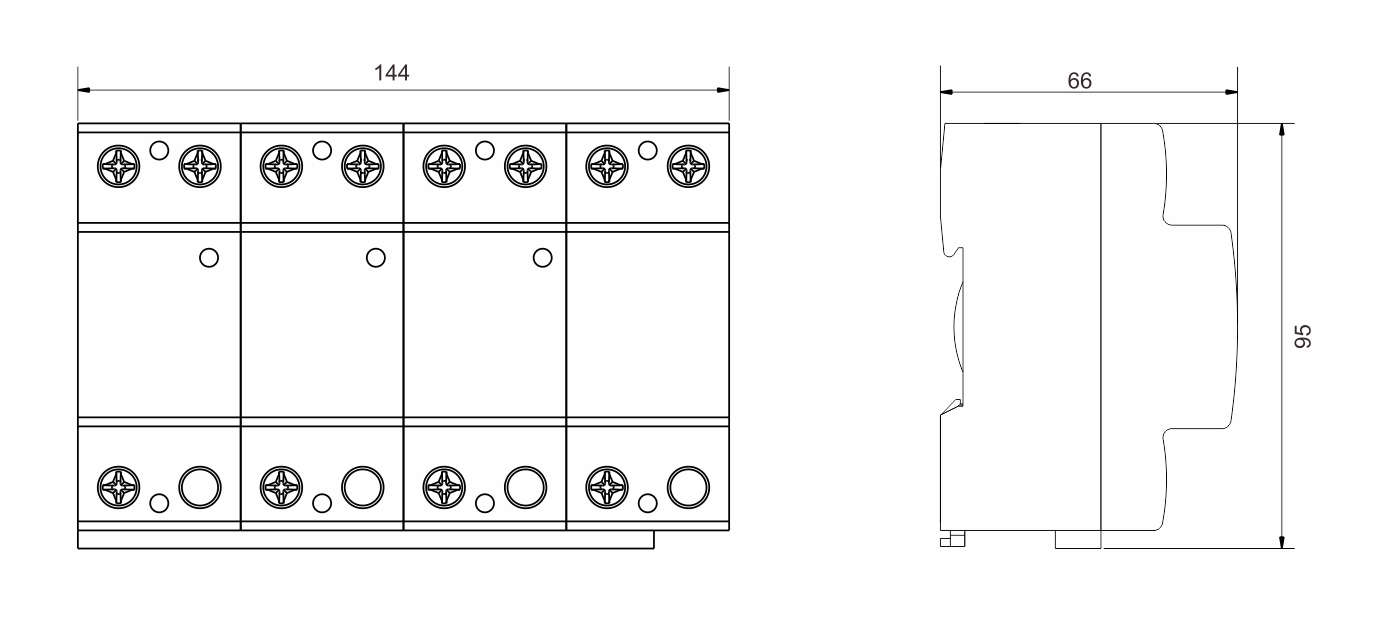

Parameters:

Model


TY-25GR 150 3+1 TY-25GR 275 3+1

TY-25GR 385 3+1

SPD classification according to EN61643-11


Type 1 Type 1

Type 1

SPD classification according to IEC61643-11


Class I Class I

Class I

Max. continuous operating a.c. voltage[L-N/N-PE]

Uc

150V/255V 275V/255V

385V/255V

Lightning impulse current (10/350μs) Iimp 25kA 25kA 25kA
Lightning impulse current (10/350μs)[N-PE]
Iimp 100kA 100kA 100kA

Nominal discharge current(8/20μs)

In

25kA 25kA

25kA

Nominal discharge current(8/20μs) [N-PE]
In 100kA 100kA 100kA

Voltage protection level

Up

≤1.8kV/≤1.5kV
≤1.8kV/≤1.5kV

≤1.8kV/≤1.5kV

Max. backup fuse


315A gG 315A gG

315A gG

Response time

tA

≤100ns
≤100ns

≤100ns

Operating temperature range

Tu

-40℃-80℃ -40℃-80℃

-40℃-80℃

Operating state / fault indication


LED LED

LED

Cross-section area (Min.)


4mm²
4mm²

4mm²

Cross-section area(Max.)


35mm²
35mm²

35mm²

For mounting on


35mm Din rail
35mm Din rail

35mm Din rail

Enclosure material


Thermoplastic UL94-V0

Degree of protection


IP20 IP20

IP20

Applictaion:

Type 1 surge protector is mainly installed in the building's main distribution board as the first level lightning protection of the building's power distribution system.

Protect electrical equipments from the direct lightning strikes.

Installation and Maintenance:

Generally installed on the main switchboard for protection.

Buildings with a large number of private areas (apartment buildings, office buildings, etc.) : If Type 1 surge protection cannot be installed, must be installed Type 2 surge protector at the entrance to each area.
