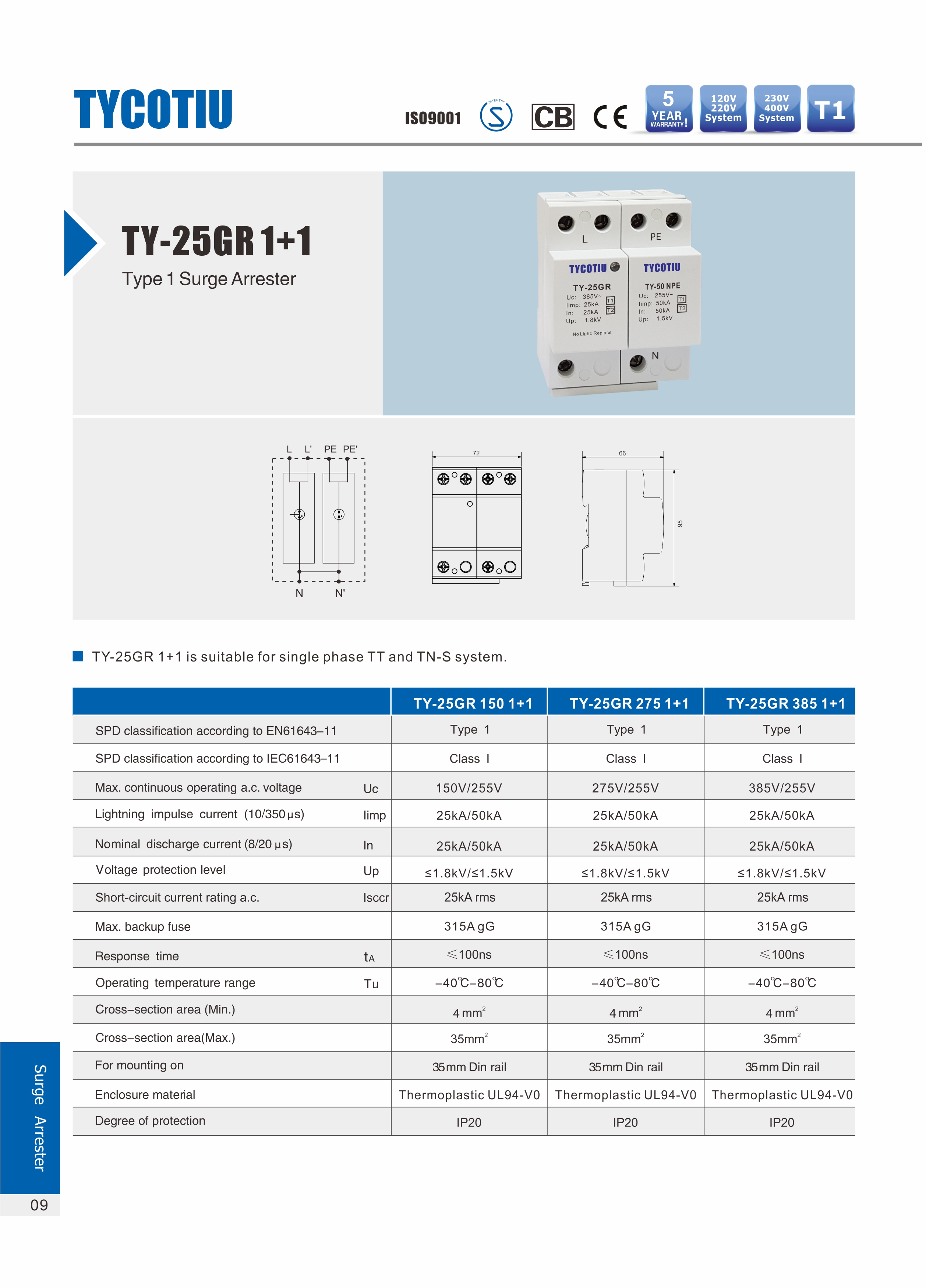

TY-25GR 1+1

TY-25GR 1+1

Category:T1 surge protector( 10/350µs)

Type 1 Surge Protector 25kA 1+1

Tel:+86-577-62605321
Email:andy.xu@tycotiu.com
PDF Download

Feartures:

Type 1 surge arrester.
IP20 protection level
Impulse current limp(10/350μs):25kA
35mm Din rail mounting
Status indication: red (fault)
Cross-section area:4mm²—35mm²
Operating temperature range: -40℃—80℃
Comply with EN 61643-11 / IEC 61643-11.

Parameters:

Model


TY-25GR 150 1+1 TY-25GR 275 1+1

TY-25GR 385 1+1

SPD classification according to EN61643-11


Type 1 Type 1

Type 1

SPD classification according to IEC61643-11


Class I Class I

Class I

Max. continuous operating a.c. voltage [L-N/N-PE]

Uc

150V/255V 275V/255V

385V/255V

Lightning impulse current (10/350μs) Iimp 25kA 25kA 25kA
Lightning impulse current (10/350μs)[N-PE]
Iimp 50kA 50kA 50kA

Nominal discharge current (8/20μs)

In

25kA 25kA

25kA

Nominal discharge current (8/20μs) [N-PE]
In 50kA 50kA 50kA

Voltage protection level [L-N/N-PE]

Up

≤1.8kV/≤1.5kV
≤1.8kV/≤1.5kV

≤1.8kV/≤1.5kV

Max. backup fuse


315A gG 315A gG

315A gG

Response time

tA

≤100ns
≤100ns

≤100ns

Operating temperature range

Tu

-40℃-80℃
-40℃-80℃

-40℃-80℃

Operating state / fault indication


LED LED

LED

Cross-section area (Min.)


4mm²
4mm²

4mm²

Cross-section area(Max.)


35mm²
35mm²

35mm²

For mounting on


35mm Din rail
35mm Din rail

35mm Din rail

Enclosure material


Thermoplastic UL94-V0

Degree of protection


IP20

IP20

IP20

Application:

Protects electrical equipments against transient overvoltages caused by direct or indirect lightning strikes or switching processes.

Mainly used on main switchboards, widely used in residential, office or industrial buildings to protect against direct or indirect lightning strikes.

Installation and Maintenance:

Should be installed in parallel in the system.

Power must be cut off before installation, do not operate under charging state.

After installation, open the switch of the automatic circuit breaker (or fuse) and check whether the working condition is normal.

During use, the display window is red, indicating that the lightning protection module is out of order. Please repair or replace it in time.
