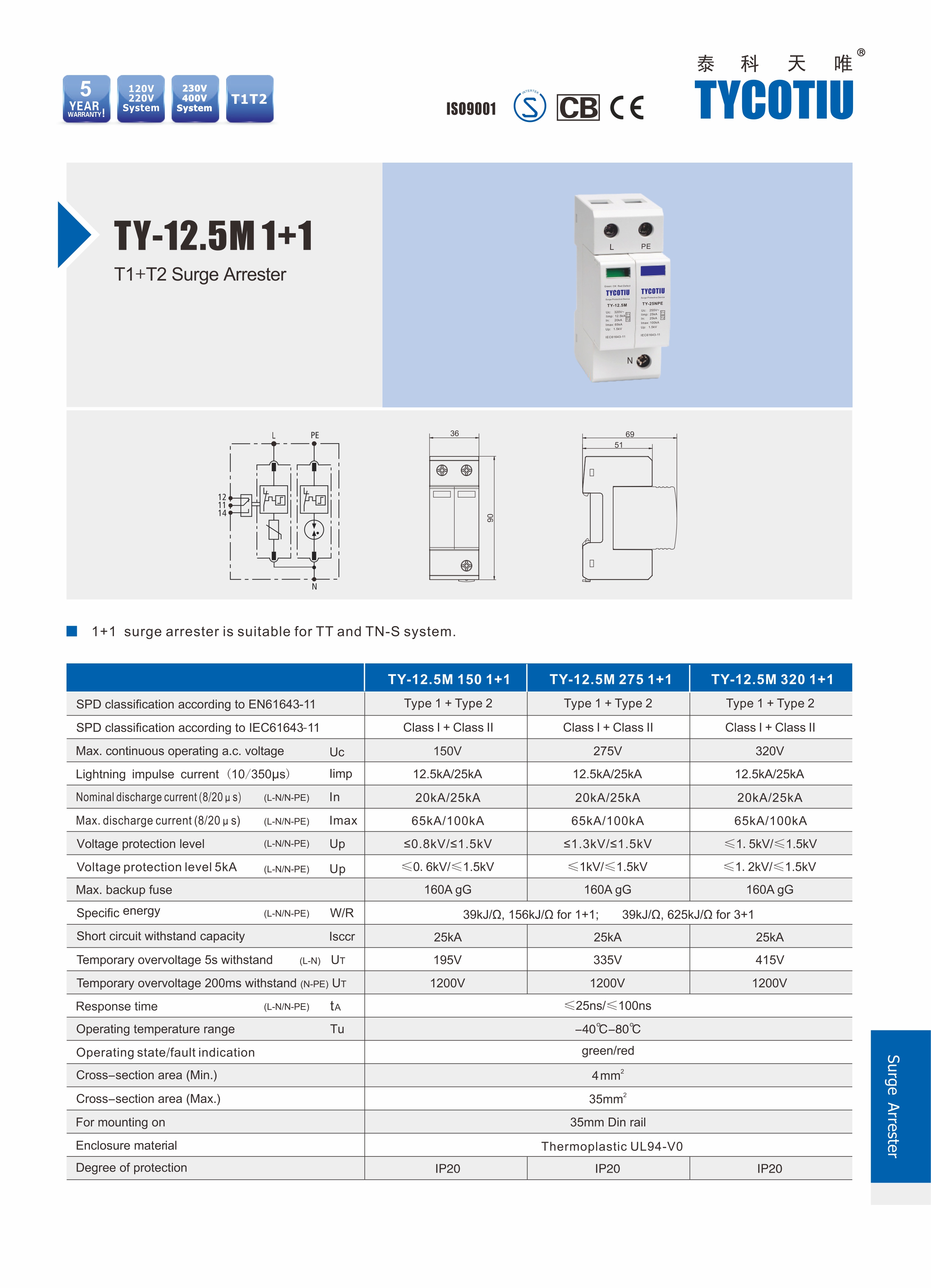

TY-12.5M 1+1
Category:T1 + 2 surge protector（10/350µs+8/20µs）
Type 1+2 Surge Protection 12.5kA 1+1
Tel:+86-577-62605321
Email:andy.xu@tycotiu.com
PDF Download
Features:
Type 1+2 surge protector
Lightning impulse current 12.5kA
Pluggable module design
Visual indication
Pole number: 1P+NPE
Remote signaling is optional
Comply with EN61643-11 standard
Parameters:
Model
TY-12.5M 320 1+1
SPD classification according to EN61643-11
Type 1+2
SPD classification according to IEC61643-11
Class I+II
Max. continuous operating a.c. voltage
Uc
320V
Max. continuous operating a.c. voltage[N-PE]
Uc
255V
Nominal discharge current(8/20μs)
In
20kA
Maximum discharge current(8/20μs)
Imax
65kA
Voltage protection level
Up
≤1.5kV
Voltage protection level[N-PE]
Up
≤1.5kV
Max. backup fuse
160A gG
Response time
tA
≤25ns
Response time[N-PE]
tA
≤100ns
Operating temperature range
Tu
-40℃-80℃
Operating state / fault indication
green / red
Cross-section area (Min.)
4mm²
Cross-section area(Max.)
35mm²
For mounting on
35mm Din rail
Enclosure material
Degree of protection
IP20
TY-12.5M 150 1+1
TY-12.5M 275 1+1
Type 1+2
Type 1+2
Class I+II
Class I+II
150V
275V
255V
255V
Lightning impulse current (10/350μs)
Iimp
12.5kA
12.5kA
12.5kA
Lightning impulse current (10/350μs)[N-PE]
Iimp
25kA
25kA
25kA
20kA
20kA
Nominal discharge current(8/20μs) [N-PE]
In
25kA
25kA
25kA
65kA
65kA
Maximum discharge current(8/20μs) [N-PE]
Imax
100kA
100kA
100kA
≤0.8kV
≤1.3kV
≤1.5kV
≤1.5kV
160A gG
160A gG
≤25ns
≤25ns
≤100ns
≤100ns
-40℃-80℃
-40℃-80℃
green / red
green / red
4mm²
4mm²
35mm²
35mm²
35mm Din rail
35mm Din rail
Thermoplastic UL94-V0
IP20
IP20
Application:
Generally used for protection of main switchboard

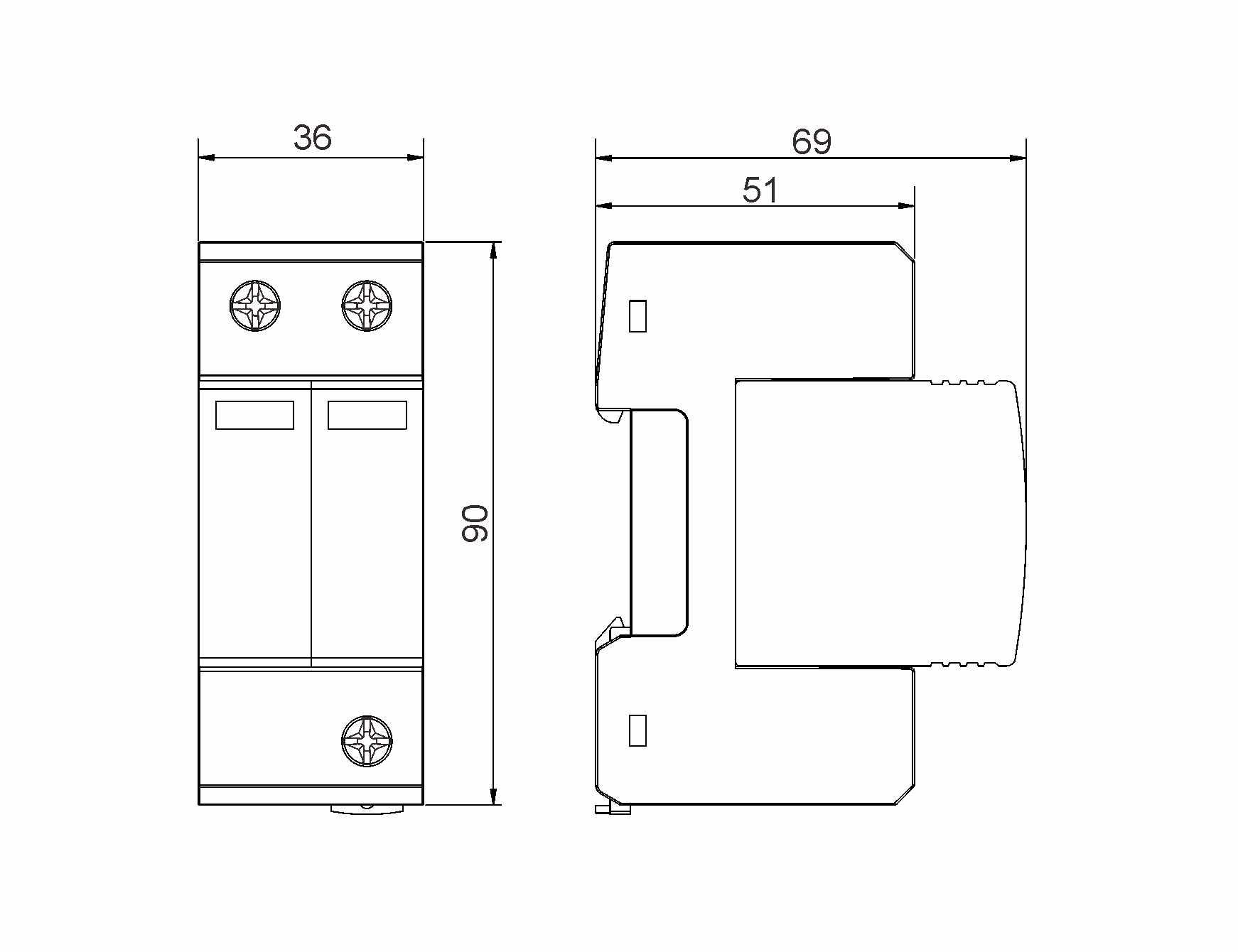

Installation and Maintenance:

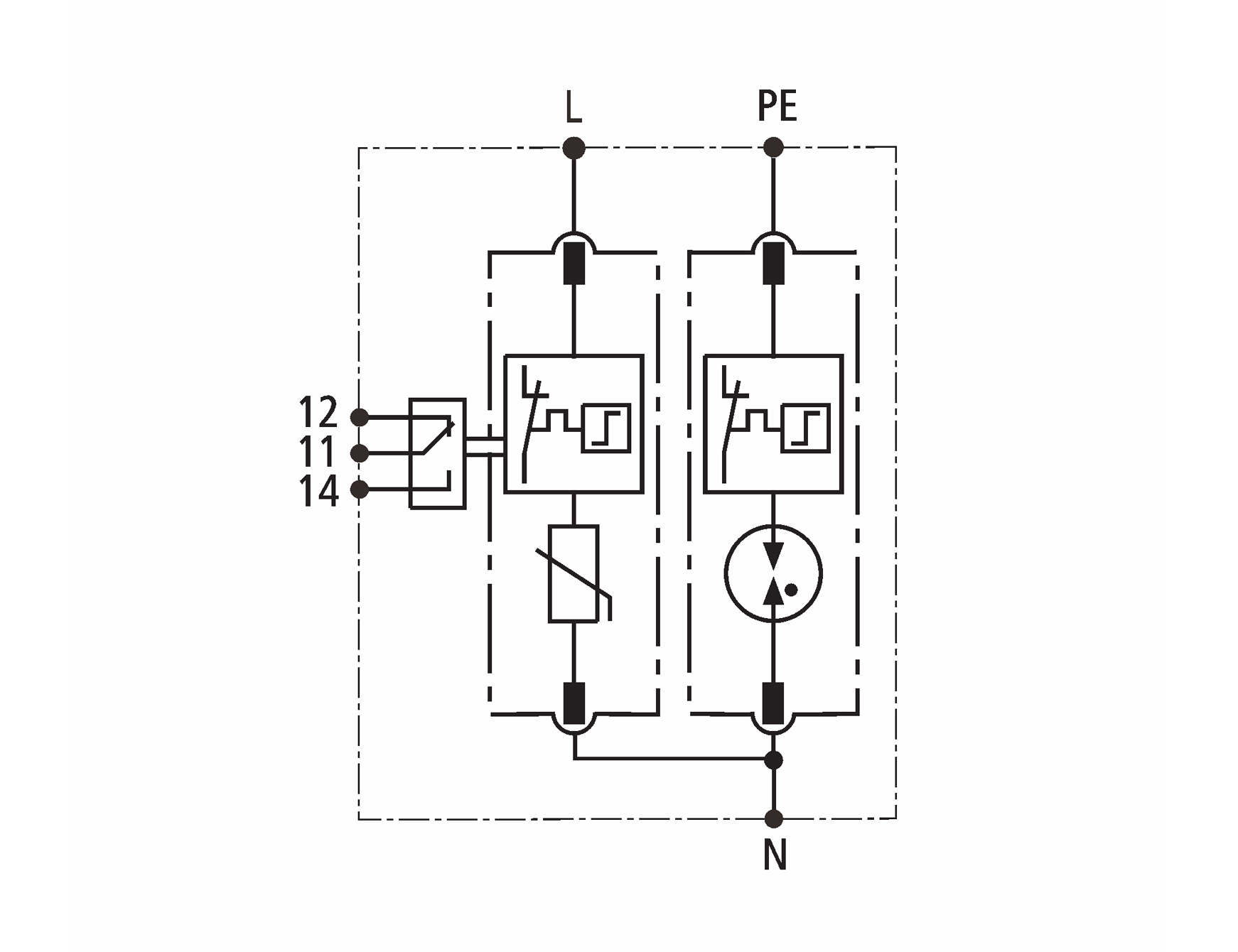

Wire according to the wiring diagram and the surge protector mark
Installation and maintenance should be carried out by professionals
When the indicator window is "red", the surge protector should be replaced immediately.
