TY-40 1P
Category:T2 surge protector（8/20µs）
40kA Single-phase Power Lightning Protection Device 1P
Tel:+86-577-62605321
Email:andy.xu@tycotiu.com
PDF Download
Features:
Type 2 surge protection
Compact design
Nominal discharge current In(8/20μs)：20kA
Max. discharge current Imax(8/20μs)：40kA
Max. continuous operating voltage Uc：385VAC (If need other voltage, please contact us)
Pole number：1P
It is composed of a basic component and 4 plug-in protection modules

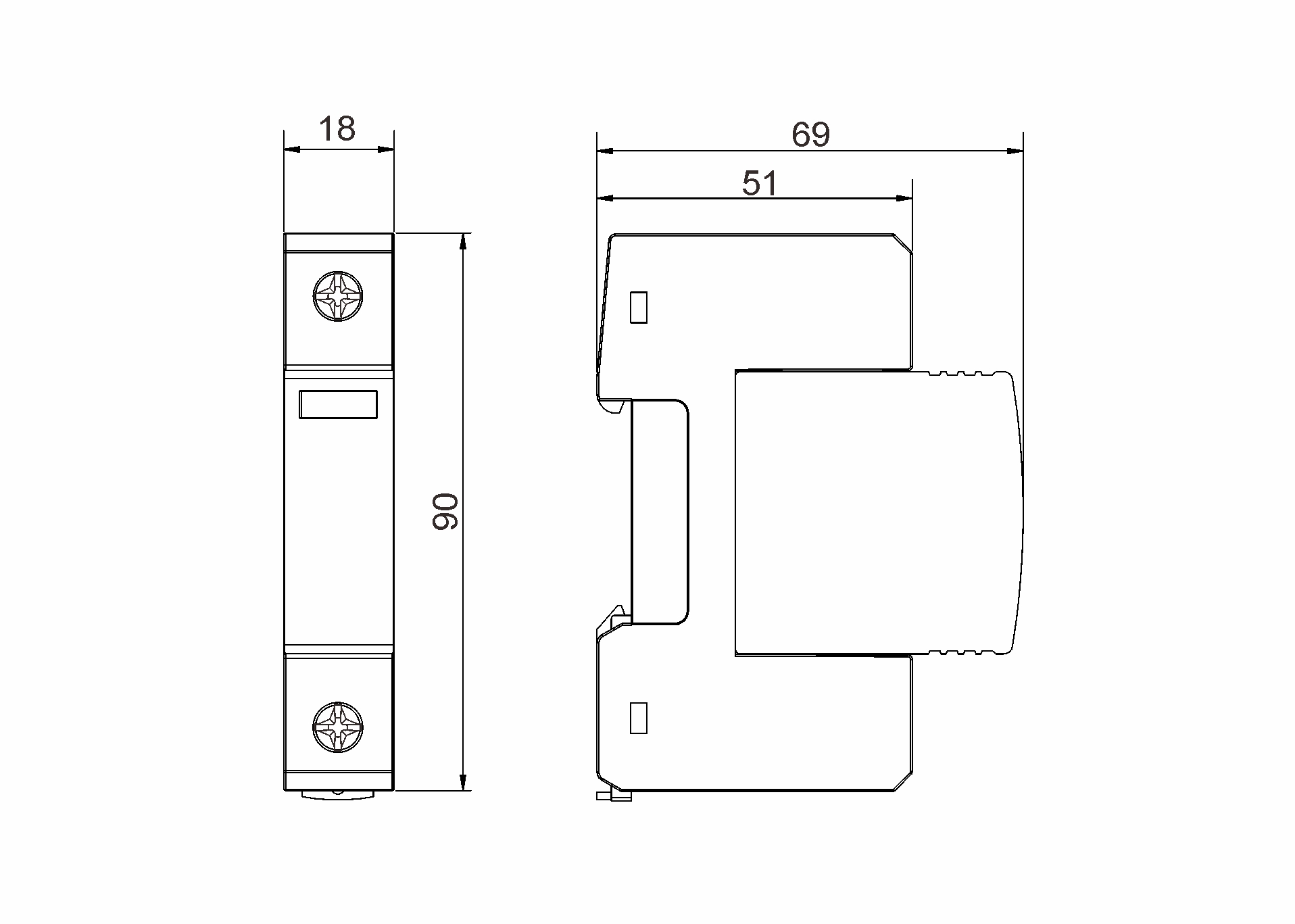

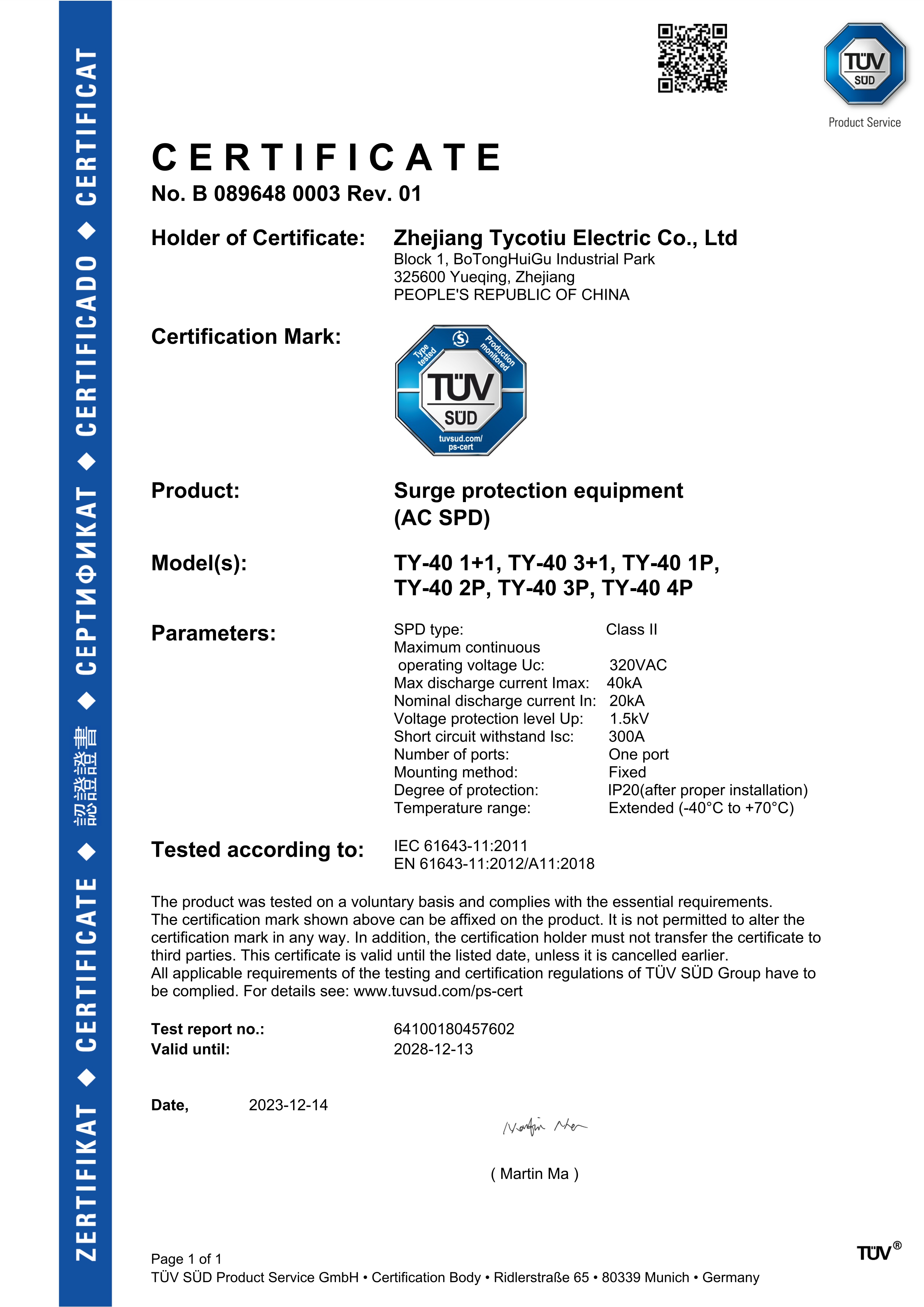

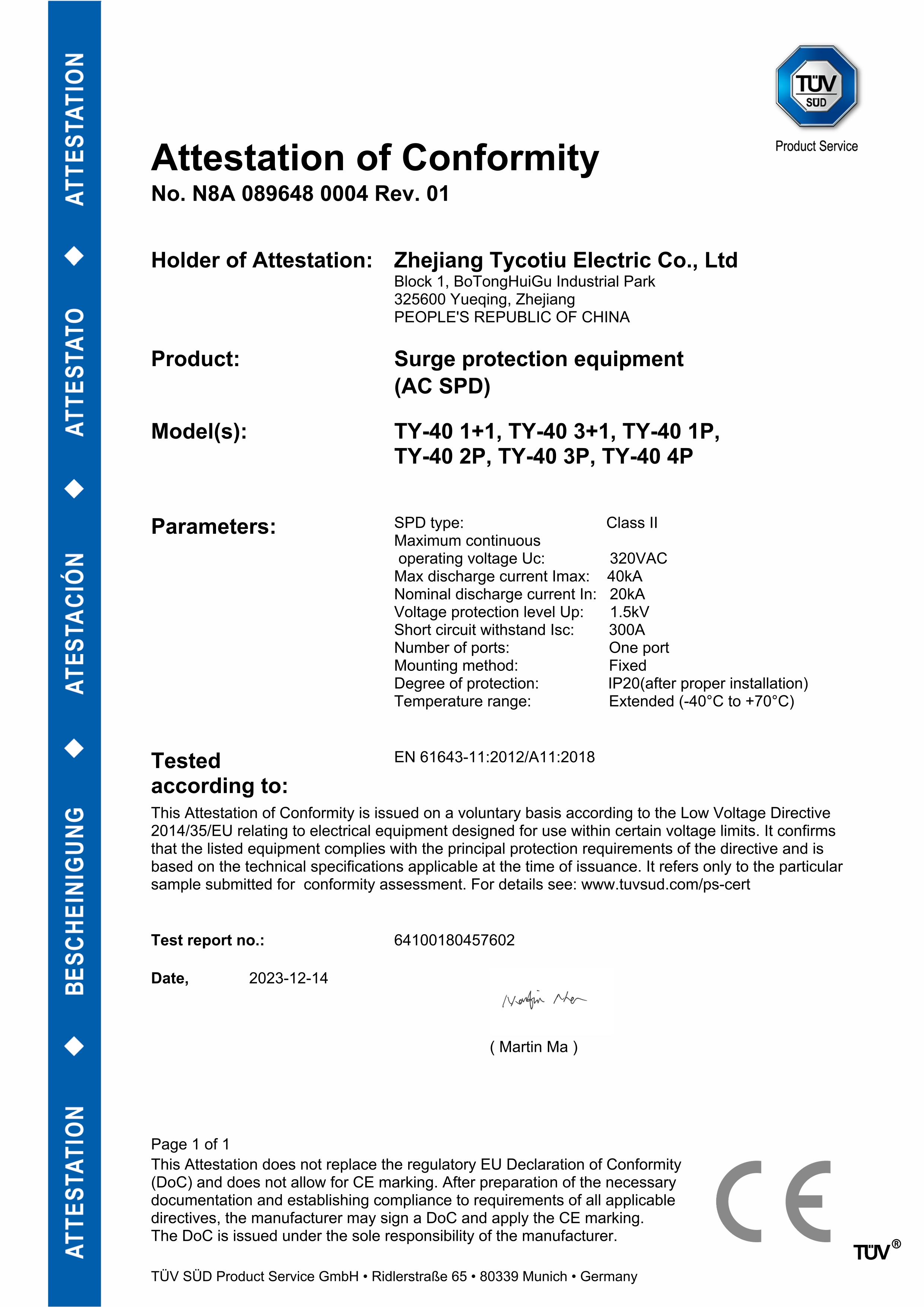

Comply with IEC 61643-11
Low residual current, fast response
Status indicator window, normal green, red indicates product failure

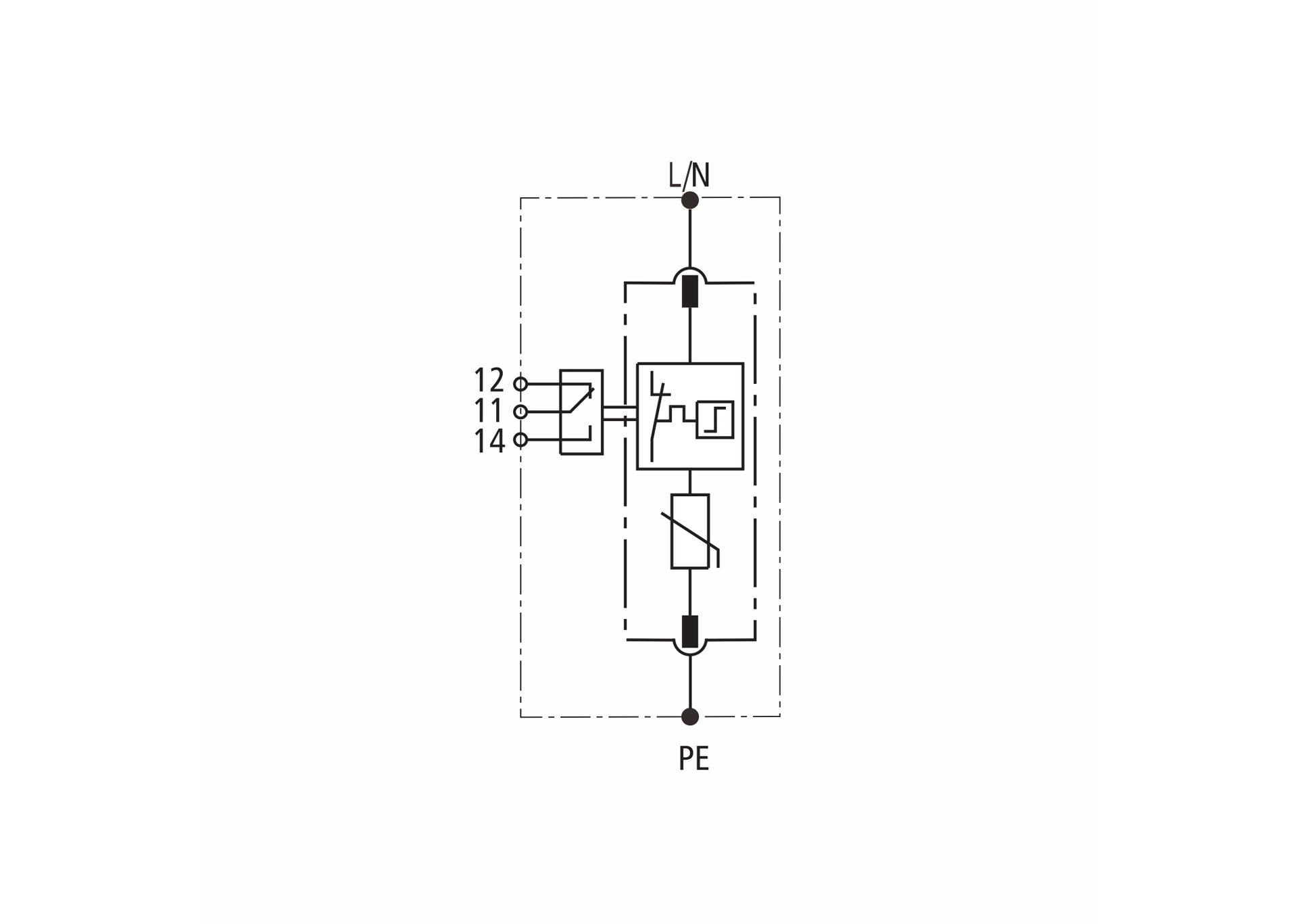

Remote signaling is optional

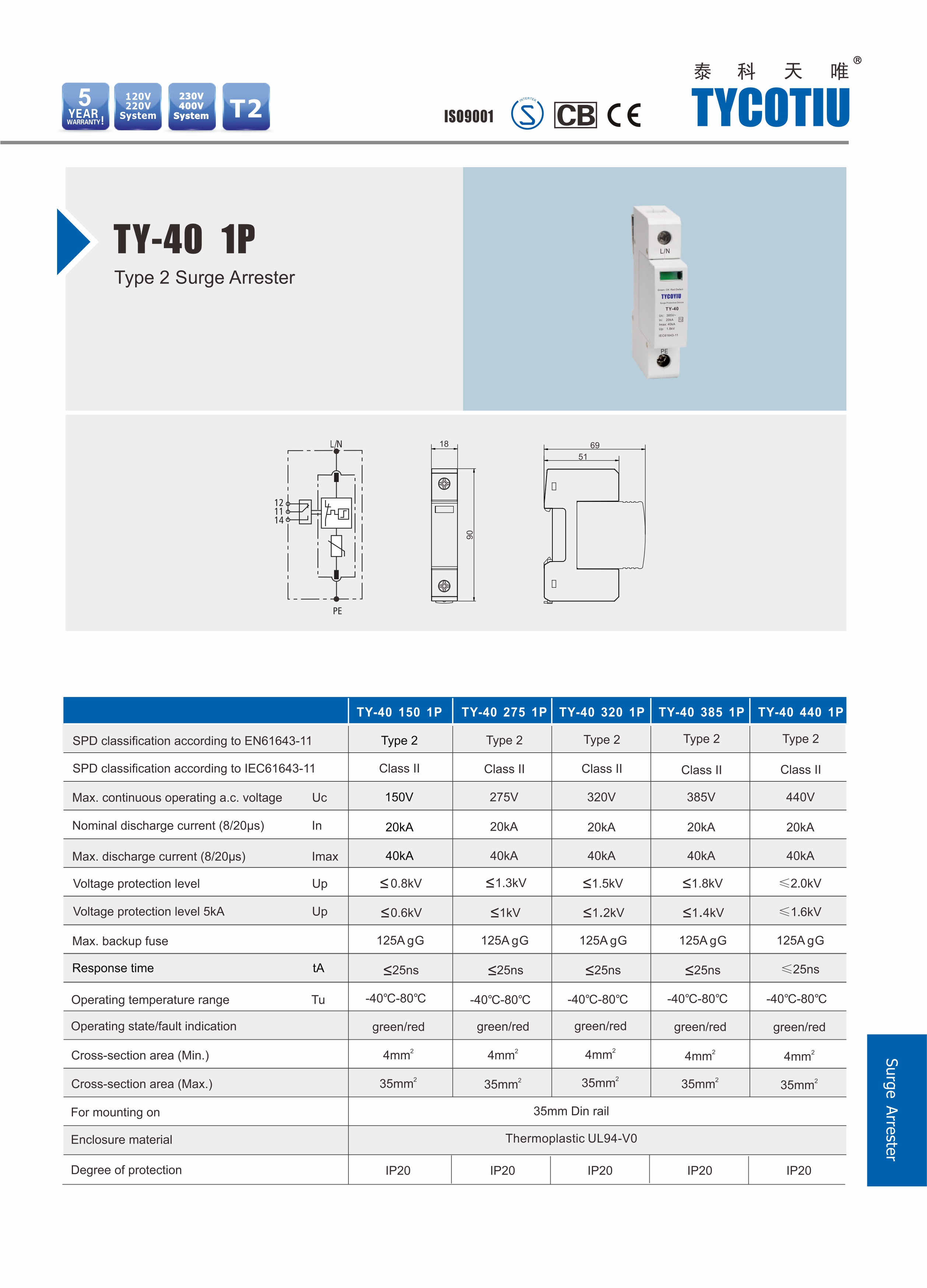

Parameters:
|
Model |
|
TY-40 150 1P |
TY-40 275 1P |
TY-40 320 1P |
TY-40 385 1P |
TY-40 440 1P |
|
SPD classification according to EN61643-11 |
|
Type 2 |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
|
SPD classification according to IEC61643-11 |
|
Class II |
Class II |
Class II |
Class II |
Class II |
|
Max. continuous operating a.c. voltage |
Uc |
150V | 275V | 320V |
385V |
440V |
|
Nominal discharge current (8/20μs) |
In |
20kA |
20kA |
20kA |
20kA |
20kA |
|
Max. discharge current (8/20μs) |
Imax |
40kA |
40kA |
40kA |
40kA |
40kA |
|
Voltage protection level |
Up |
≤0.8kV |
≤1.3kV |
≤1.5kV |
≤1.8kV |
≤2.0kV |
|
Voltage protection level 5kA |
Up |
≤0.6kV |
≤1.0kV |
≤1.2kV |
≤1.4kV |
≤1.6kV |
|
Max. backup fuse |
|
125A gG |
125A gG |
125A gG |
125A gG |
125A gG |
|
Response time |
tA |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
|
Operating temperature range |
Tu |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
|
Operating state / fault indication |
|
green / red |
green / red |
green / red |
green / red |
green / red |
|
Cross-section area (Min.) |
|
4mm² |
4mm² |
4mm² |
4mm² |
4mm² |
|
Cross-section area(Max.) |
|
35mm² |
35mm² |
35mm² |
35mm² |
35mm² |
|
For mounting on |
|
35mm Din rail |
||||
|
Enclosure material |
|
Thermoplastic UL94-V0 |
||||
|
Degree of protection |
|
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
Application:
Suitable for lightning protection of AC 50/60Hz system
Used to protect low-voltage equipment from lightning transient voltage and surge damage
Installation and Maintenance:
After installation, check whether the protection unit is inserted in place, close the circuit breaker (fuse) switch, and check whether the working state is normal.
When the fault indication window changes from green to red, please replace it as soon as possible.
