TY-40 2P
Category:T2 surge protector（8/20µs）
40kA Single-phase Power Lightning Protection Device 2P
Tel:+86-577-62605321
Email:andy.xu@chtaike.com.cn

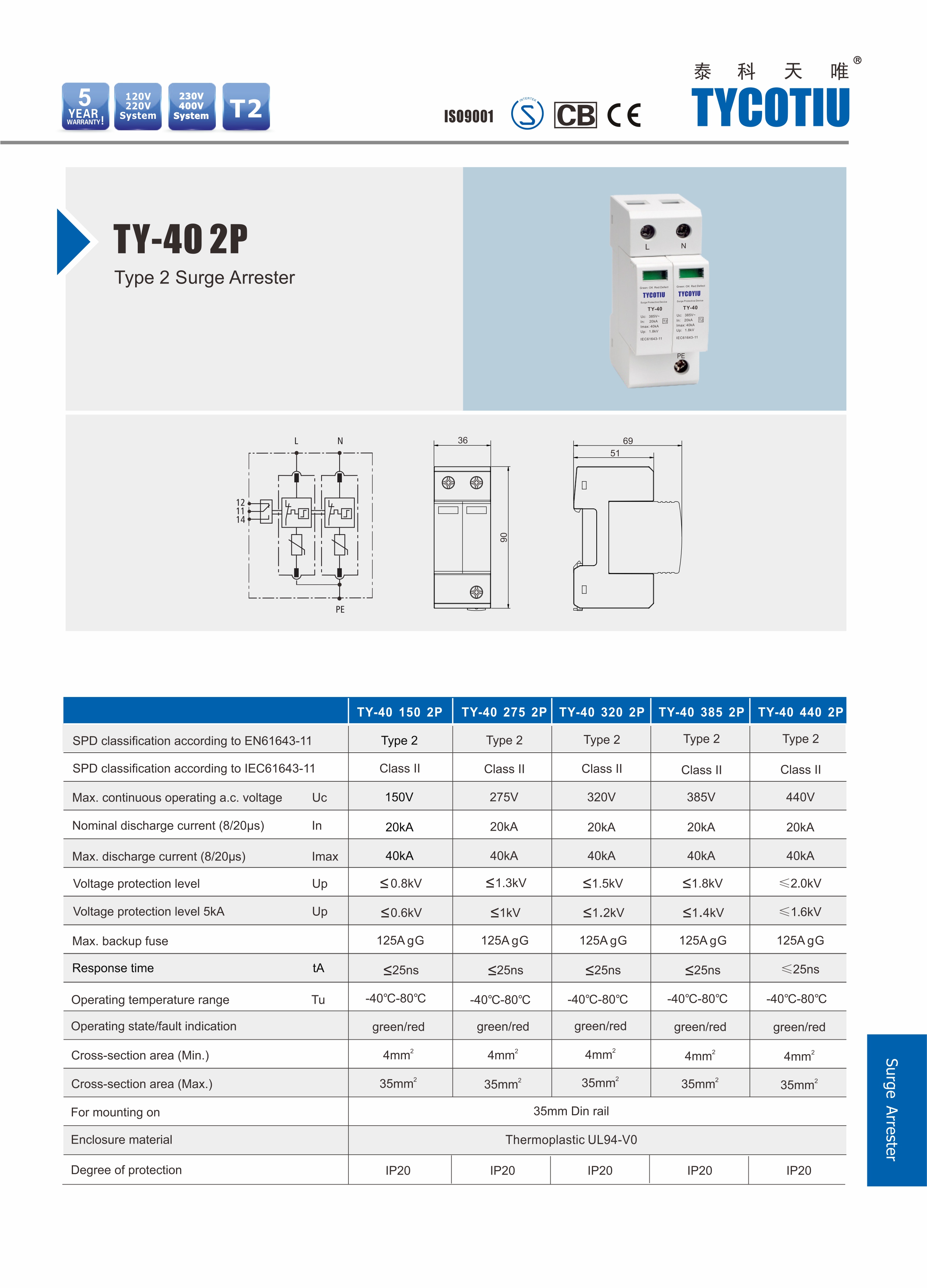

PDF Download
Features:
Type 2 surge protection
Compact design
Nominal discharge current In(8/20μs)：20kA
Max. discharge current Imax(8/20μs)：40kA
Max. continuous operating voltage Uc：385VAC (If need other voltage, please contact us)
Pole number：2P
It is composed of a basic component and 4 plug-in protection modules
Comply with IEC 61643-11
Low residual current, fast response
Status indicator window, normal green, red indicates product failure
Remote signaling is optional
Parameters:
|
Model |
|
TY-40 150 2P |
TY-40 275 2P |
TY-40 320 2P |
TY-40 385 2P |
TY-40 440 2P |
|
SPD classification according to EN61643-11 |
|
Type 2 |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
|
SPD classification according to IEC61643-11 |
|
Class II |
Class II |
Class II |
Class II |
Class II |
|
Max. continuous operating a.c. voltage |
Uc |
150V | 275V | 320V |
385V |
440V |
|
Nominal discharge current (8/20μs) |
In |
20kA |
20kA |
20kA |
20kA |
20kA |
|
Max. discharge current (8/20μs) |
Imax |
40kA |
40kA |
40kA |
40kA |
40kA |
|
Voltage protection level |
Up |
≤0.8kV |
≤1.3kV |
≤1.5kV |
≤1.8kV |
≤2.0kV |
|
Voltage protection level 5kA |
Up |
≤0.6kV |
≤1.0kV |
≤1.2kV |
≤1.4kV |
≤1.6kV |
|
Max. backup fuse |
|
125A gG |
125A gG |
125A gG |
125A gG |
125A gG |
|
Response time |
tA |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
|
Operating temperature range |
Tu |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
-40℃-80℃ |
|
Operating state / fault indication |
|
green / red |
green / red |
green / red |
green / red |
green / red |
|
Cross-section area (Min.) |
|
4mm² |
4mm² |
4mm² |
4mm² |
4mm² |
|
Cross-section area(Max.) |
|
35mm² |
35mm² |
35mm² |
35mm² |
35mm² |
|
For mounting on |
|
35mm Din rail |
||||
|
Enclosure material |
|
Thermoplastic UL94-V0 |
||||
|
Degree of protection |
|
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |

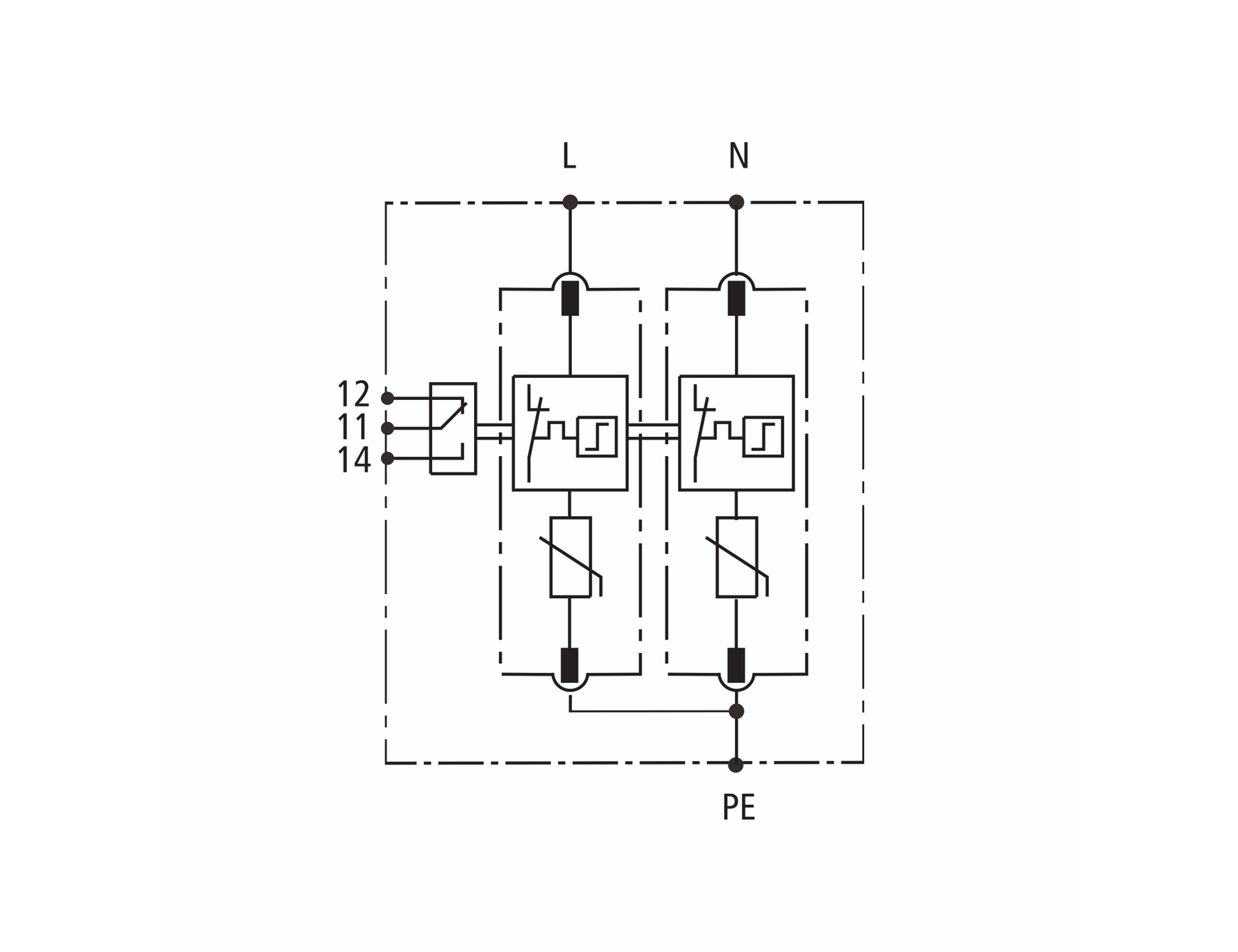

Application:
Suitable for TN-S system
Used to protect electrical equipment from lightning and transient voltage damage
Widely used in residential, tertiary industry and industrial fields
Installation and Maintenance:
Installation should be performed by a professional operator
When the window displays red, it is the fault state and needs to be replaced quickly
If installed outdoors, a weatherproof enclosure should be installed
