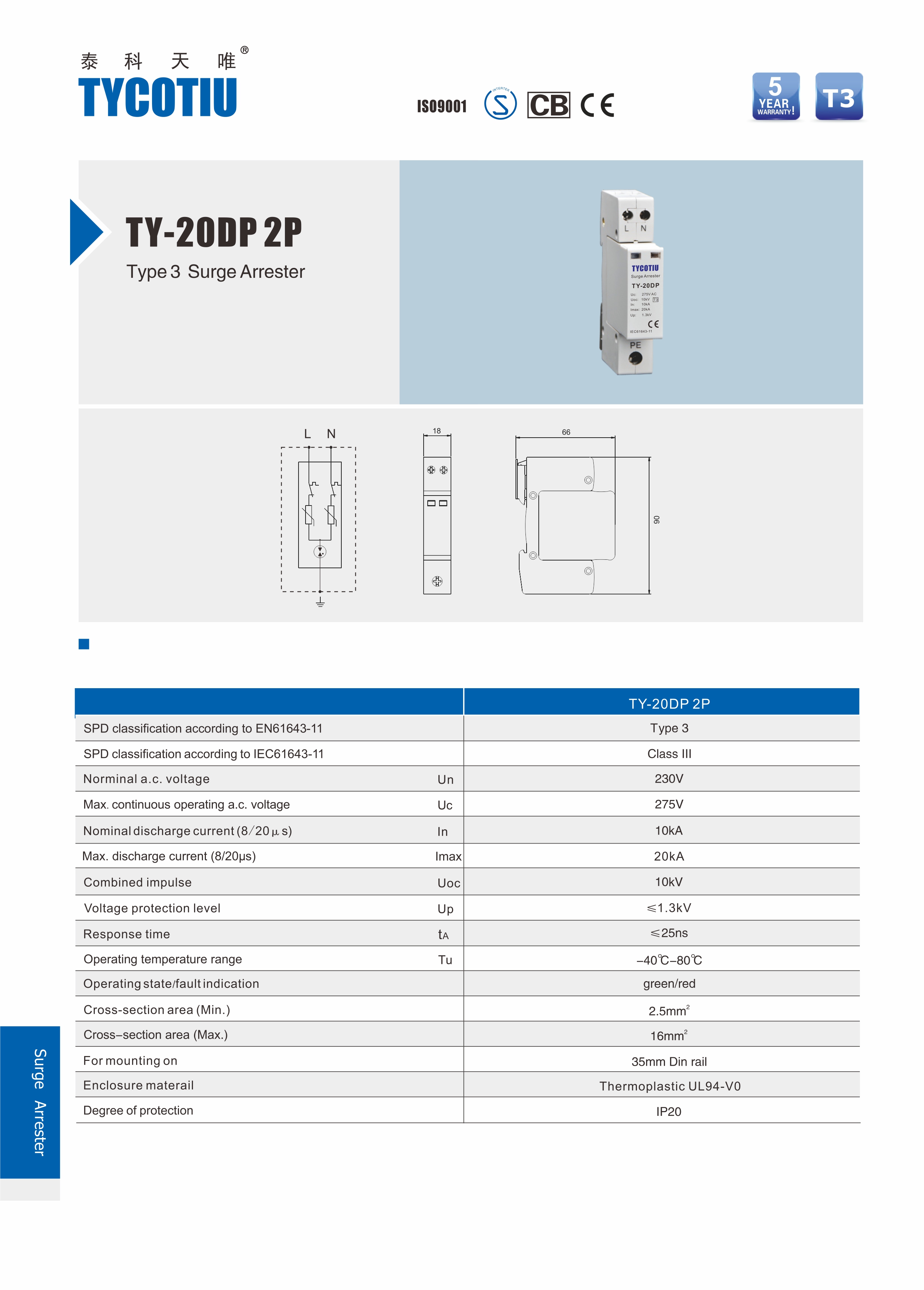

TY-20DP 2P

TY-20DP 2P

Category:T3 surge protector (1.2/50µs)

Type 3 Class III Surge Protection Device 10kA 10kV 2P

Tel:+86-577-62770026
Email:andy.xu@chtaike.com.cn
PDF Download

Features:

Type 3 surge protector

Two-pole in one-piece design

With status indication

Comply with IEC61643-11 and EN61643-11 standards

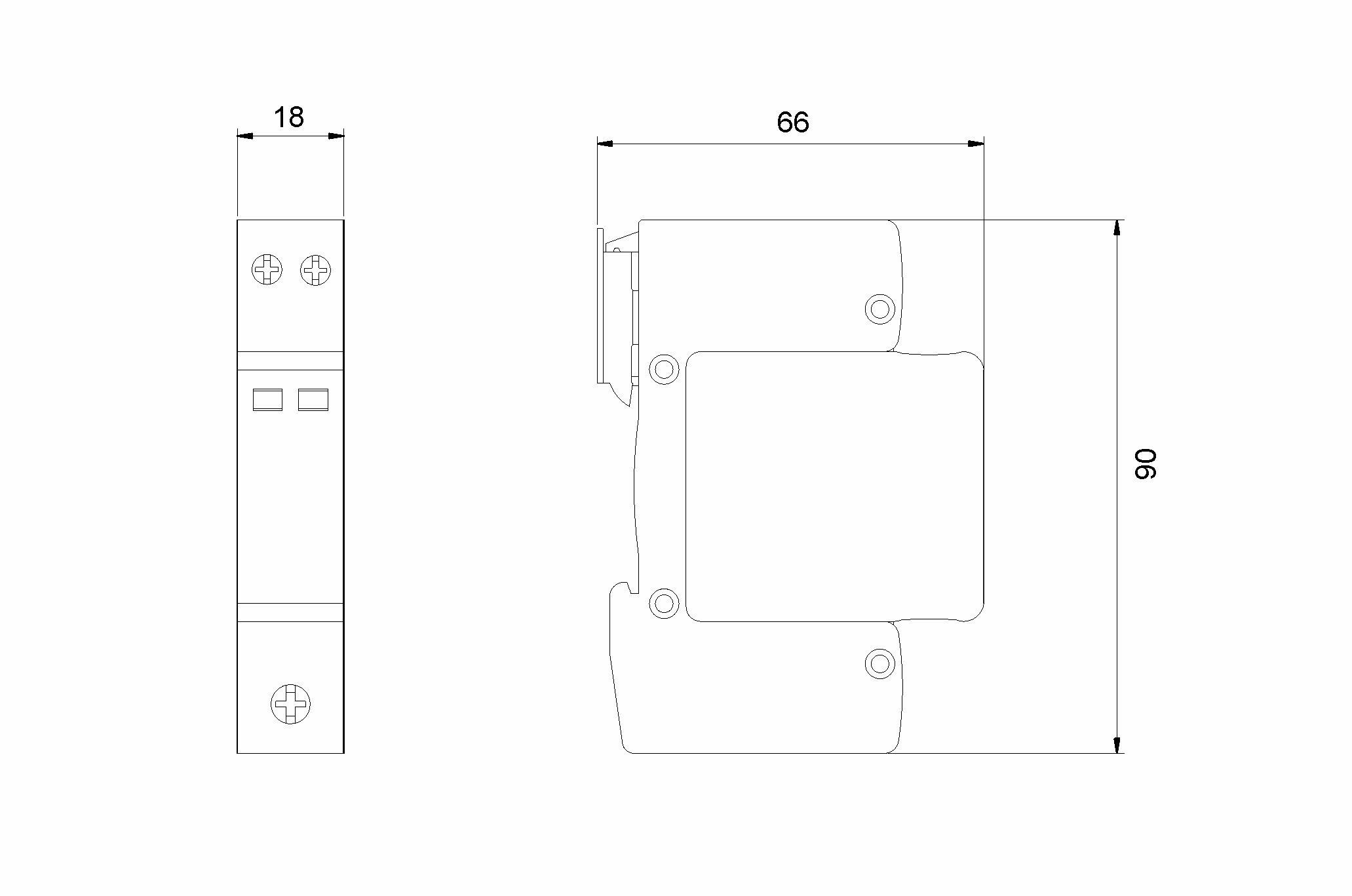

Parameters:

Model


TY-20DP 2P

SPD classification according to EN61643-11


Type 3

SPD classification according to IEC61643-11


Class III

Max. continuous operating a.c. voltage

Uc

275V

Norminal discharge current(8/20μs)

In

10kA

Max. discharge current(8/20μs)

Imax

20kA

Combined impulse

Uoc

10kV

Voltage protection level

Up

≤1.3kV

Response time

tA

≤25ns

Operating temperature range

Tu

-40℃-80℃

Operating state / fault indication


Green / red

Cross-section area (Min.)


2.5mm²

Cross-section area (Max.)


16mm²

For mounting on


35mm Din rail

Enclosure material


Thermal plastic UL94-V0

Degree of protection


IP20

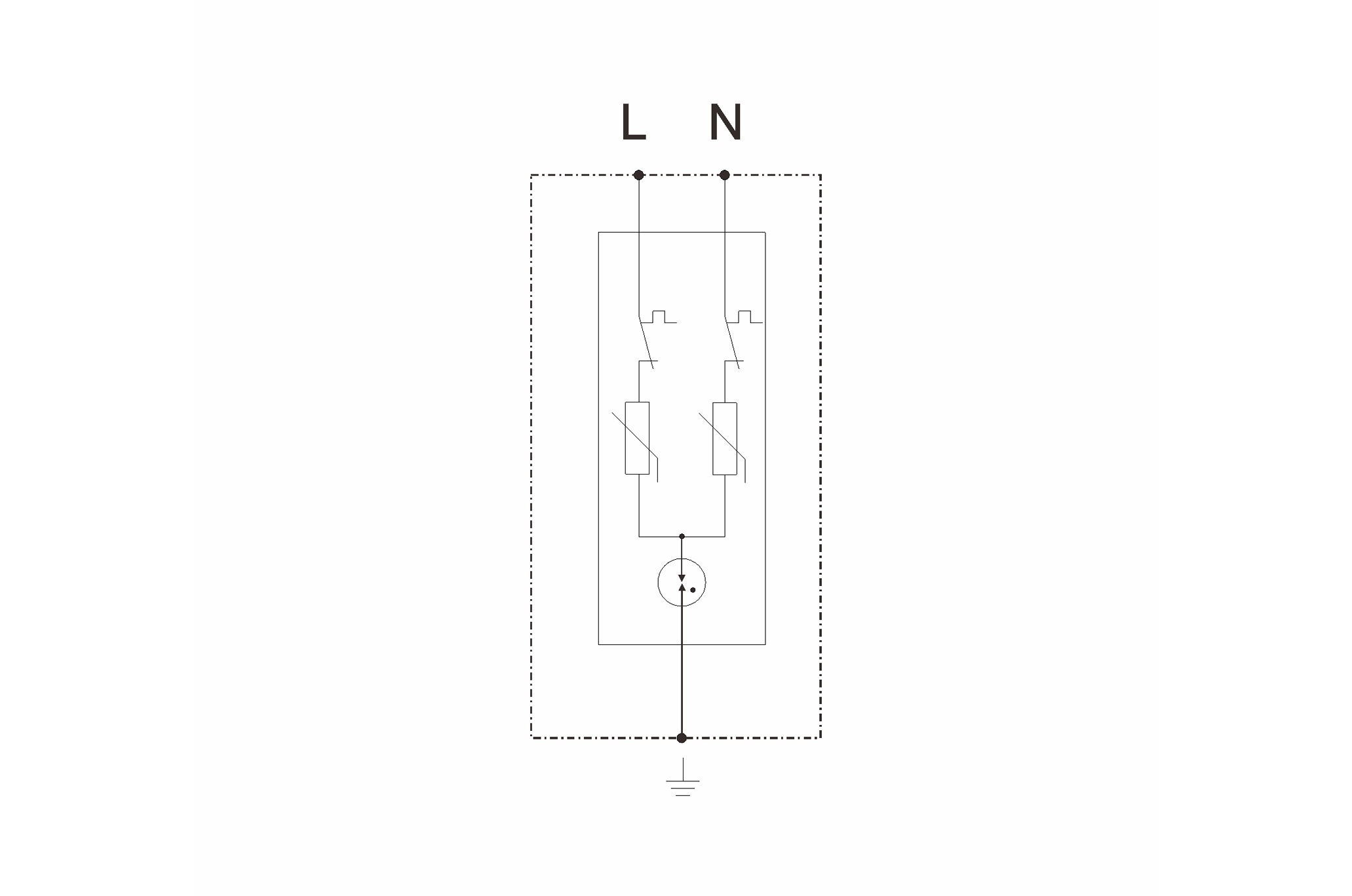

Application:

Suitable for single-phase systems

Used for power supply systems with rated voltage of 230V(50/60Hz) to protect the system from transient overvoltage damage such as indirect lightning strike and direct lightning strike

Installation and Maintenance:

Installation should be performed by a professional operator

When the window displays red, it is the fault state and needs to be replaced quickly

If installed outdoors, a weatherproof enclosure should be installed
