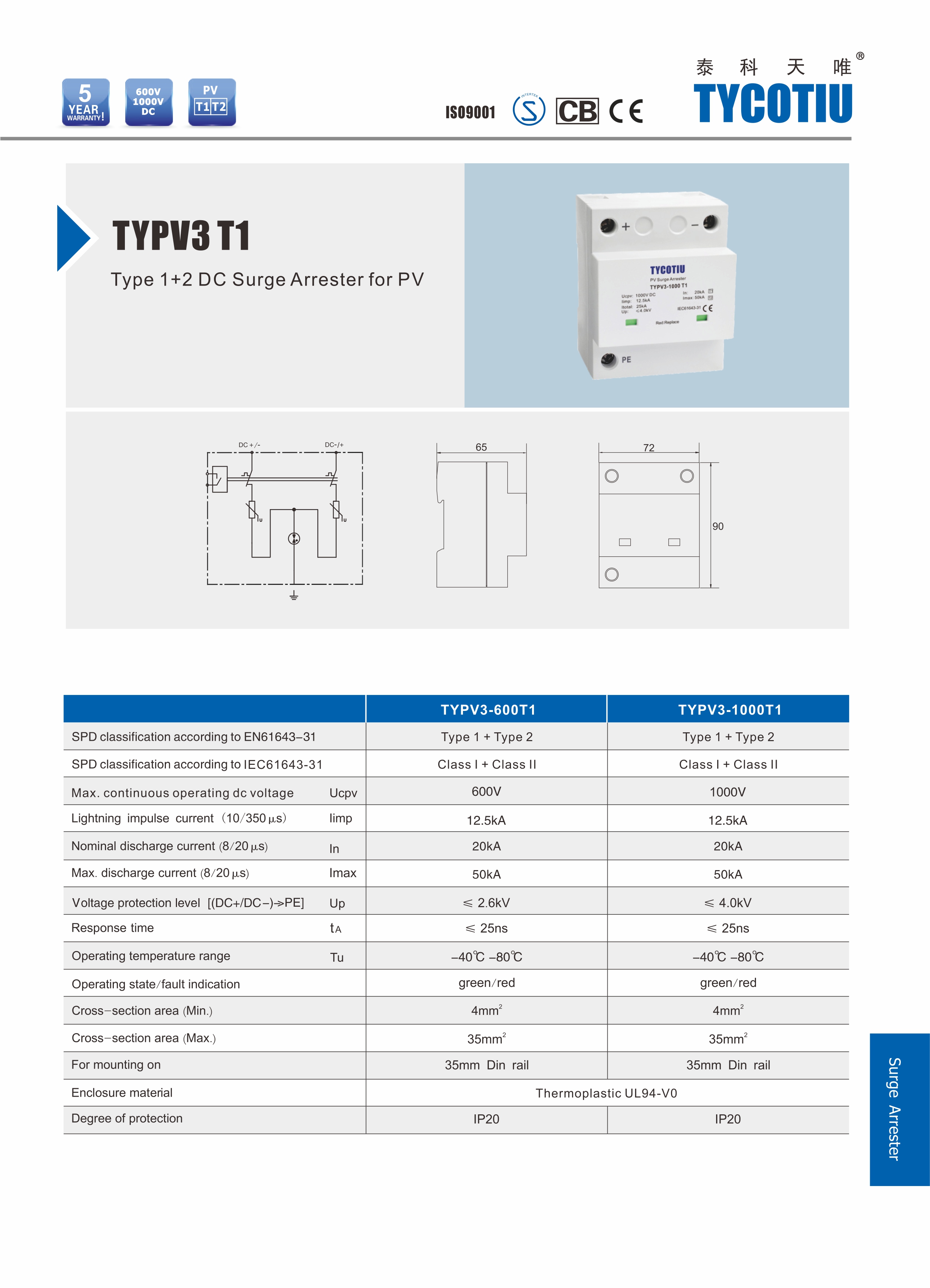

TYPV3 T1

Category:T1 DC surge protector（10/350µs）

1000V 12.5kA Type 1+2 Class I+II Photovoltaic DC Surge Protector

PDF Download

Features:

Type 1+2 photovoltaic DC surge protector

With status indication

Max. continuous operating voltage UC：600VDC / 1000VDC

Lightning impulse current (10/350us): 12.5kA

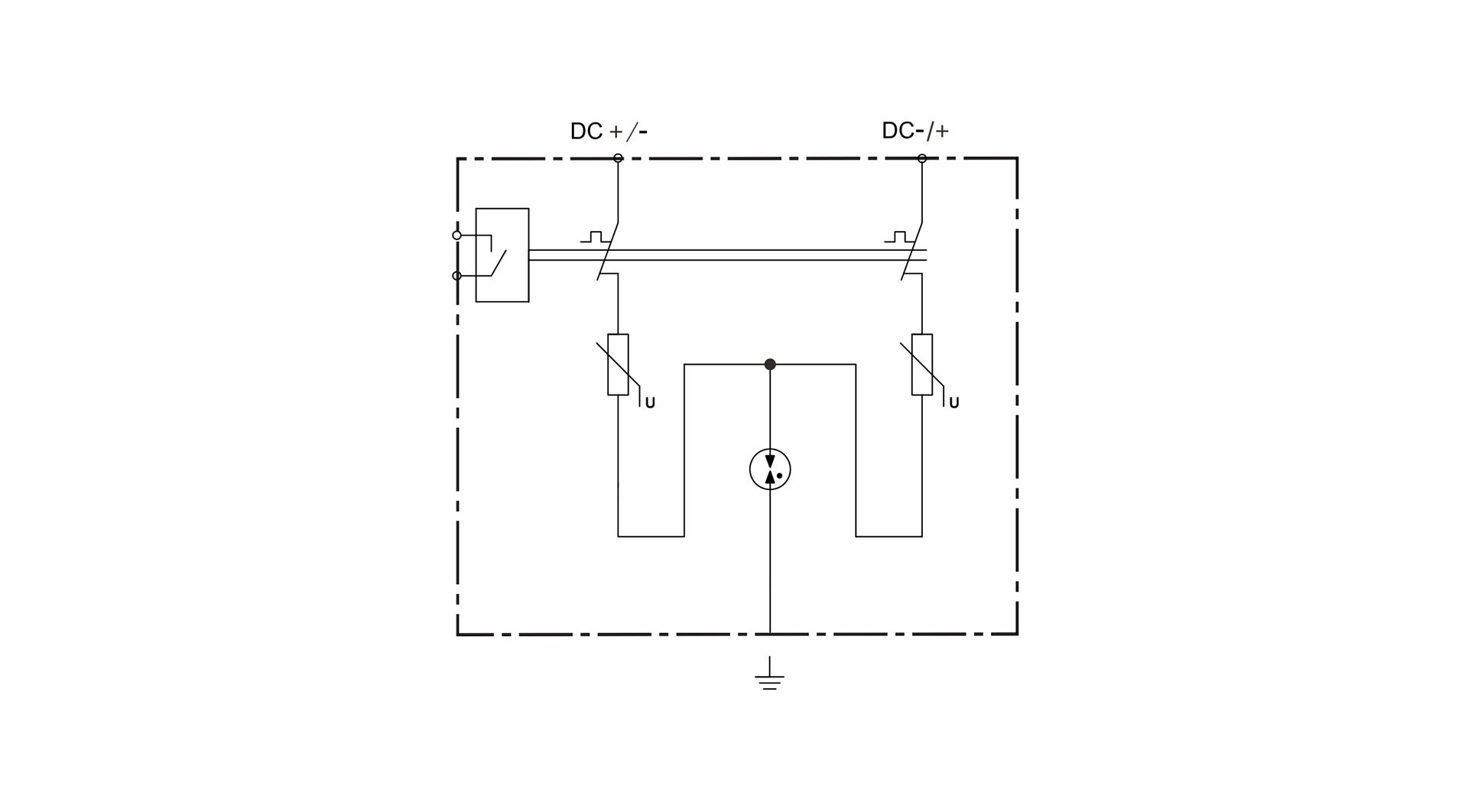

Core components: high energy MOV, GDT

Protection level：IP20

Comply with IEC 61643-31 and EN 61643-31

Parameters:

Model		TYPV3-600T1	TYPV3-1000T1
SPD classification according to EN61643-31		Type 1+2	Type 1+2
SPD classification according to IEC61643-31		Class I+II	Class I+II
Max. continuous operating d.c. voltage	Ucpv	600V DC	1000V DC
Lightning impulse current(10/350us)	Iimp	12.5kA	12.5kA
Nominal discharge current (8/20μs)	In	20kA	20kA
Max. discharge current(8/20μs)	Imax	50kA	50kA
Voltage protection level	Up	≤2.6kV	≤4.0kV
Response time	tA	≤25ns	≤25ns
Operating temperature range	Tu	-40℃-80℃	-40℃-80℃
Operating state / fault indication		Green / red	Green / red
Cross-section area (Min.)		4mm²	4mm²
Cross-section area (Max.)		35mm²	35mm²

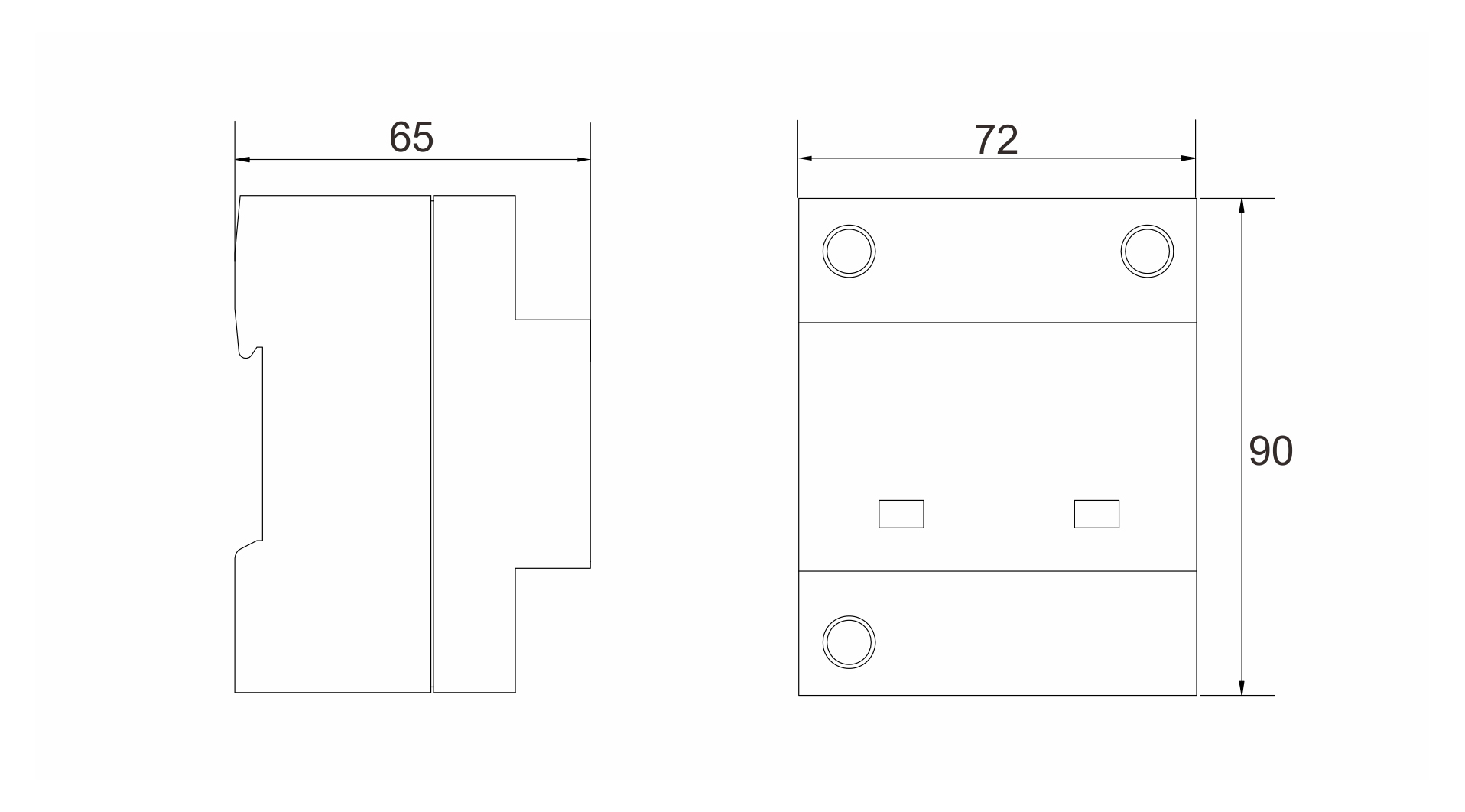

For mounting on		35mm Din rail	35mm Din rail
Enclosure material		Thermoplastic UL94-V0	Thermoplastic UL94-V0
Degree of protection		IP20	IP20

Application:

It is suitable for lightning protection of DC power system such as solar photovoltaic power system

Used to protect photovoltaic systems from direct and indirect lightning strikes

Installation and Maintenance:

Installation should be performed by a professional operator

To be installed in parallel in the DC system

When the window displays red, it is the fault state and needs to be replaced quickly
