TYPV3-1000T1-5
Category:T1 + 2 DC surge protector（10/350µs+8/20µs）
1000V 5kA Type 1+2 Class I+II Photovoltaic DC Surge Protector
Tel:+86-577-62605321
Email:andy.xu@chtaike.com.cn

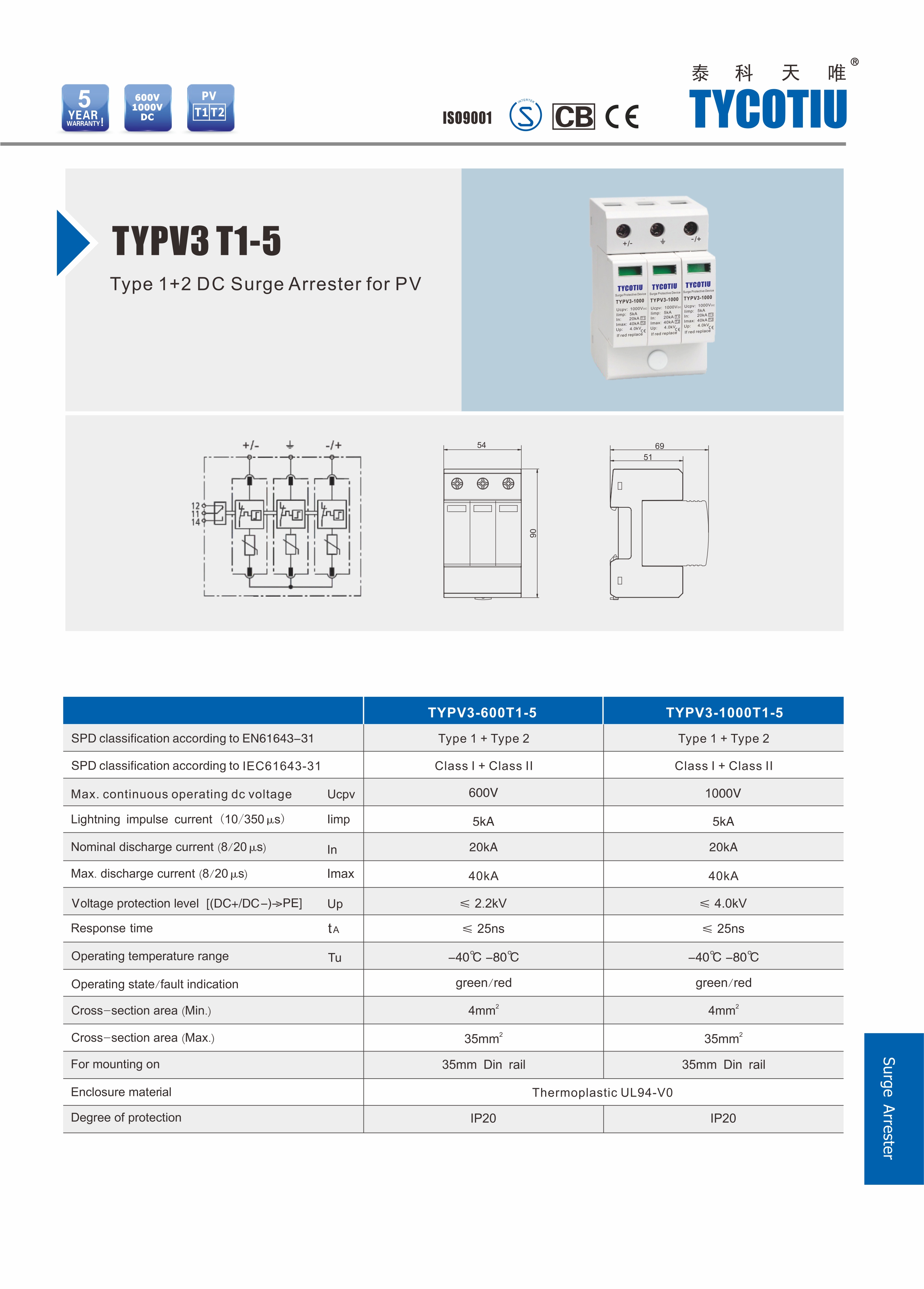

PDF Download
Features:
Type 1+2 photovoltaic DC surge protector
With status indication
Max. continuous operating voltage UC：1000VDC
Lightning impulse current (10/350us): 5kA
Protection level：IP20
Comply with IEC 61643-31 and EN 61643-31

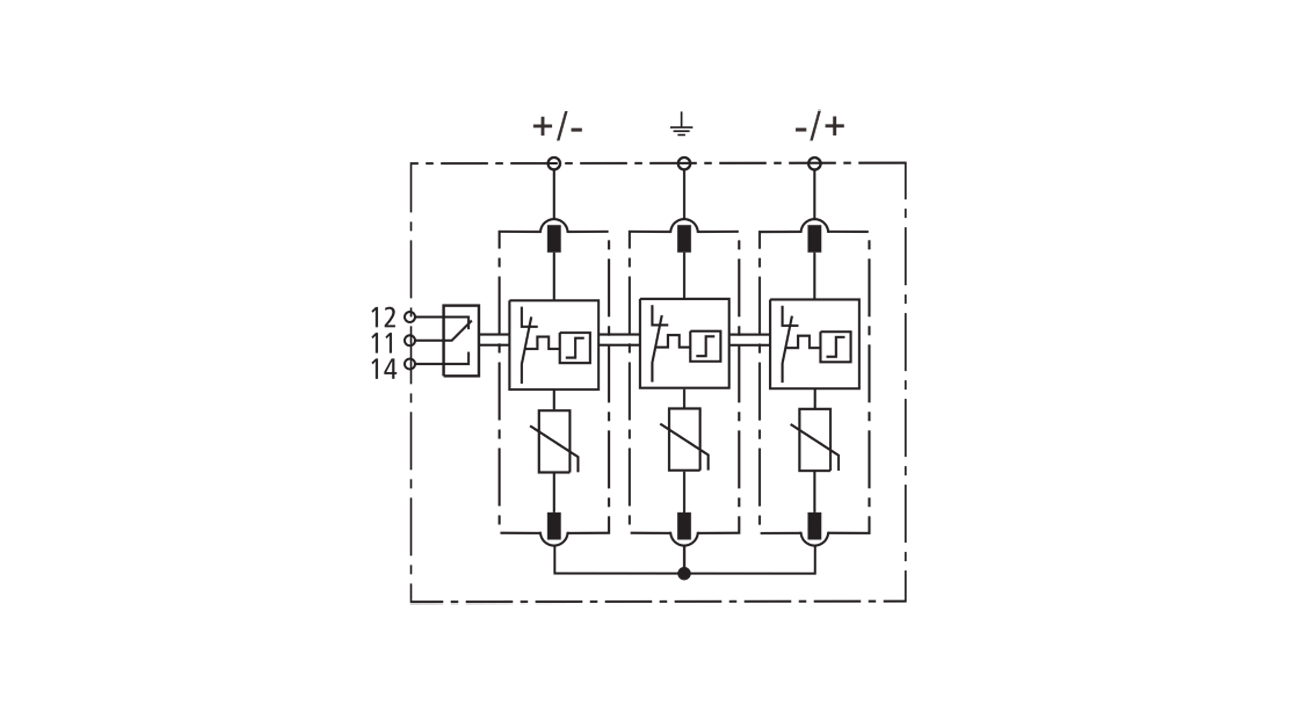

Parameters:
Model
TYPV3-1000T1-5
SPD classification according to EN61643-31
Type 1+2
SPD classification according to IEC61643-31
Class I+II
Max. continuous operating d.c. voltage
Ucpv
1000V DC
Nominal discharge current (8/20μs)
In
20kA
Max. discharge current(8/20μs)
Imax
40kA
Voltage protection level
Up
≤4.0kV
Response time
tA
≤25ns
Operating temperature range
Tu
-40℃-80℃
Operating state / fault indication
green / red
Cross-section area (Min.)
4mm²
Cross-section area (Max.)
35mm²
For mounting on
35mm Din rail
Enclosure material
Thermoplastic UL94-V0
Degree of protection
IP20
Lightning impulse current(10/350us)
Iimp
5kA
Application:
It is suitable for lightning protection of DC power system such as solar photovoltaic power system
Used to protect photovoltaic systems from direct and indirect lightning strikes
Installation and Maintenance:
Installation should be performed by a professional operator
To be installed in parallel in the DC system
When the window displays red, it is the fault state and needs to be replaced quickly
