TYPV2-600
Category:T2 photovoltaic DC surge protector(8/20µs)
600V 2 Mods Type 2 Photovoltaic DC Surge Protection Device
Tel:+86-577-62605321
Email:andy.xu@tycotiu.com
PDF DownloadFeatures:
TYPV2-600 is Type 2 surge arrestor for DC systems
Max. continuous operating voltage UC:600VDC
Nominal discharge current In(8/20μs): 20kA
Max. discharge current Imax(8/20μs): 40kA
Core component: high energy MOV
With status indication
Protection level:IP20
Remote signaling is optional
Comply with IEC 61643-31 and EN 61643-31

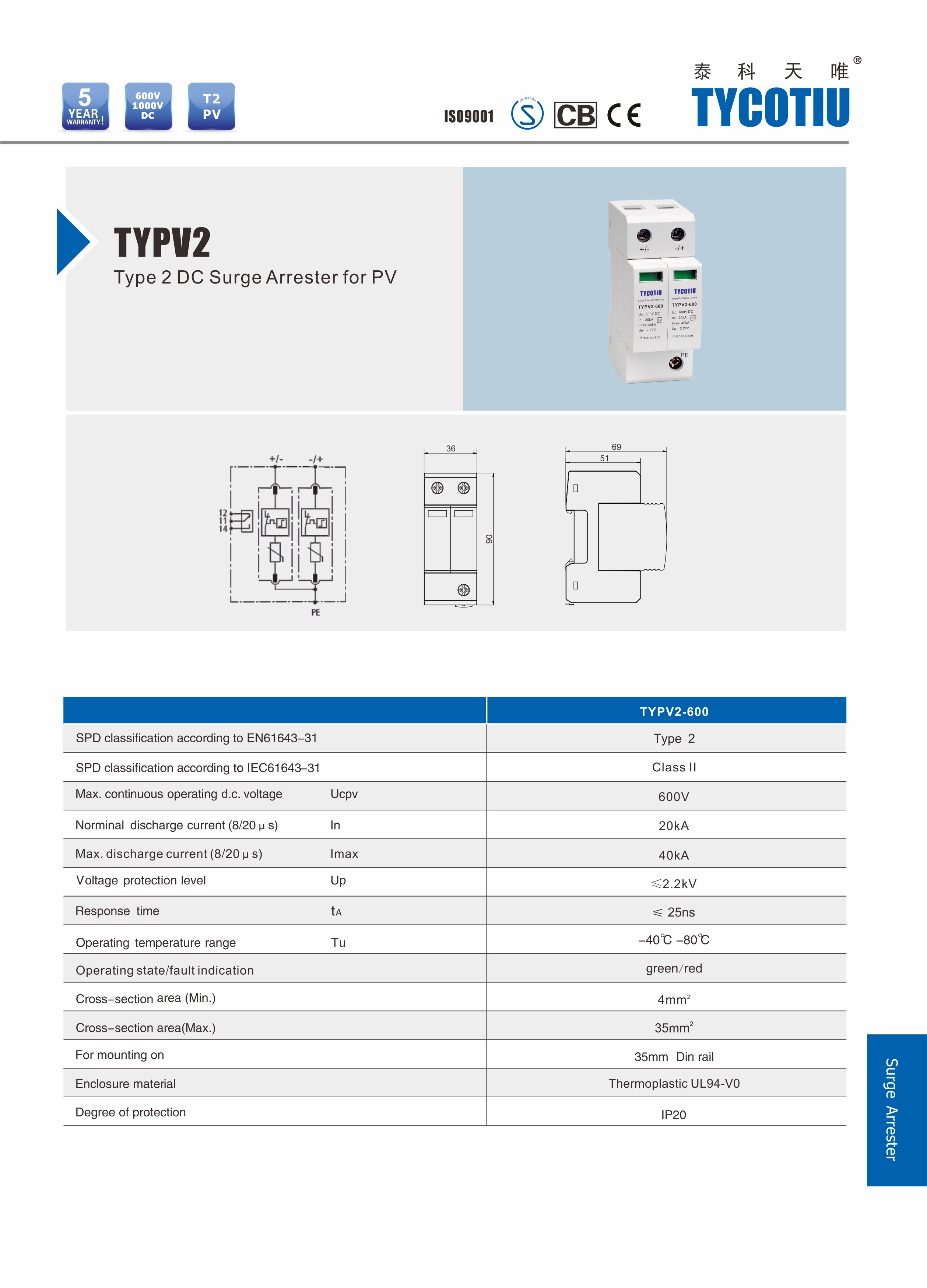

Parameters:
Model
TYPV2-600
SPD classification according to EN61643-31
Type 2
SPD classification according to IEC61643-31
Class II
Max. continuous operating d.c. voltage
Ucpv
600V
Nominal discharge current(8/20μs)
In
20kA
Voltage protection level [(DC+/DC-)→PE]
Up
≤2.8kV
Response time
tA
≤25ns
Operating temperature range
Tu
-40℃-80℃
Operating state / fault indication
green / red
Cross-section area (Min.)
4mm²
Cross-section area (Max.)
35mm²

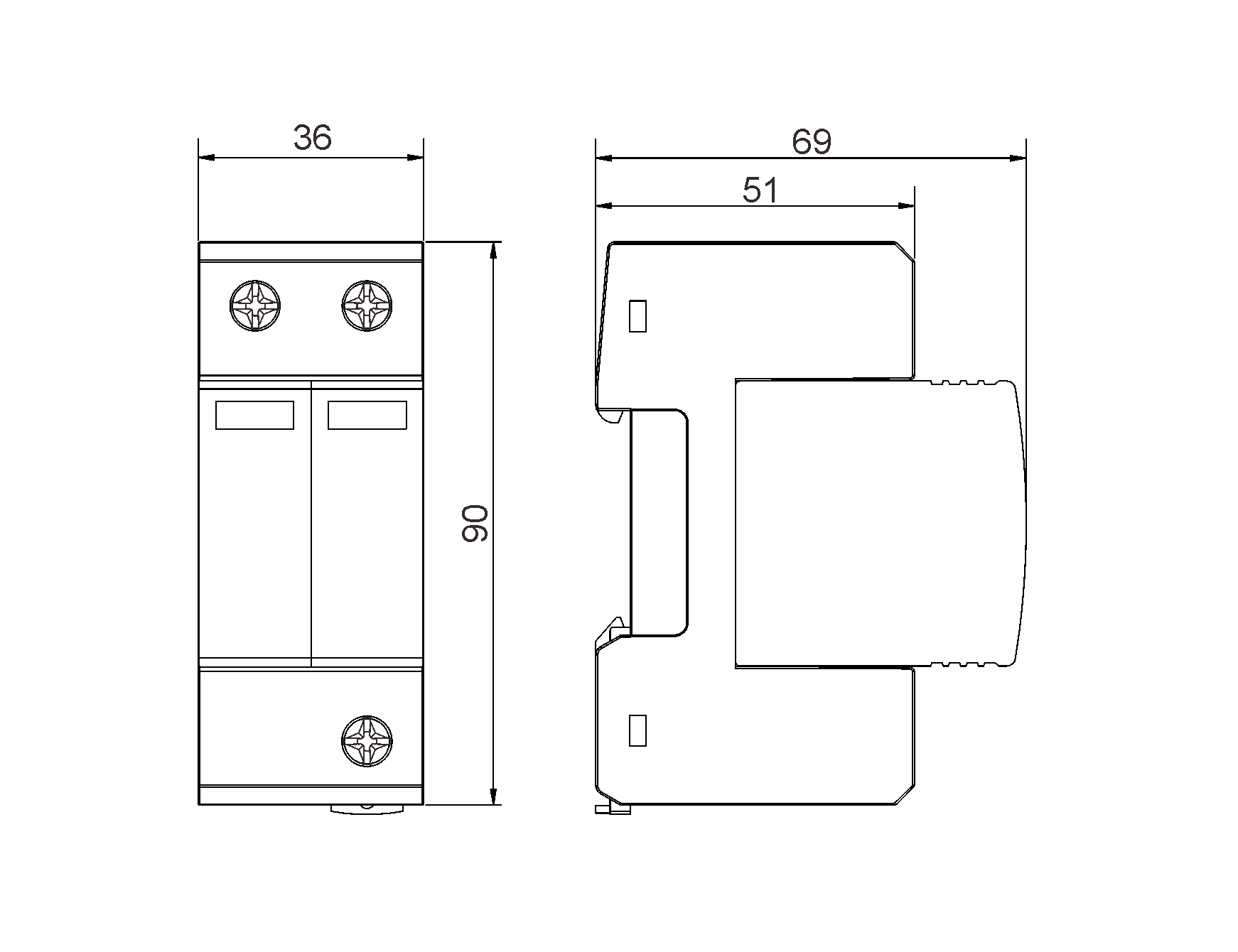

For mounting on
35mm Din rail
Enclosure material
Thermoplastic UL94-V0
Degree of protection
IP20
Max. discharge current(8/20μs)
Imax
40kA
Application:
Suitable for lightning protection of new energy solar photovoltaic power system or other DC power supply system
Protect DC equipment from lightning strikes
It is generally used in photovoltaic combiner box and photovoltaic power box, etc.
Installation and Maintenance:

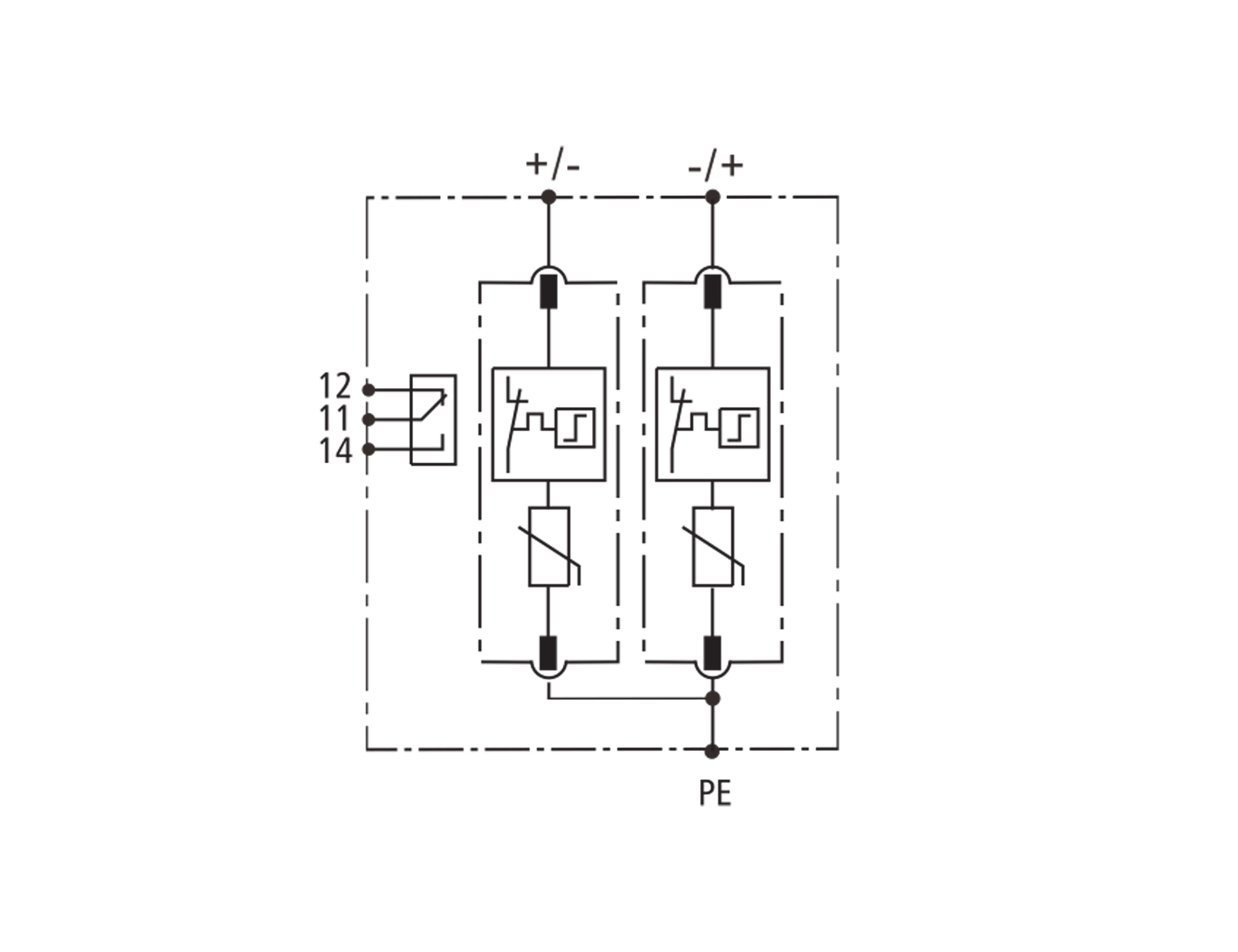

To be installed in parallel in the DC system
Installation by professional operators
The green window indicates the normal working state, and the red window indicates the failure state, which needs to be replaced
