TY-BE-24
Category:SPD for 4-20mA
4-20mA Analog Signal Lightning Protection Device 24V
Tel:+86-577-62605321
Email:andy.xu@tycotiu.com

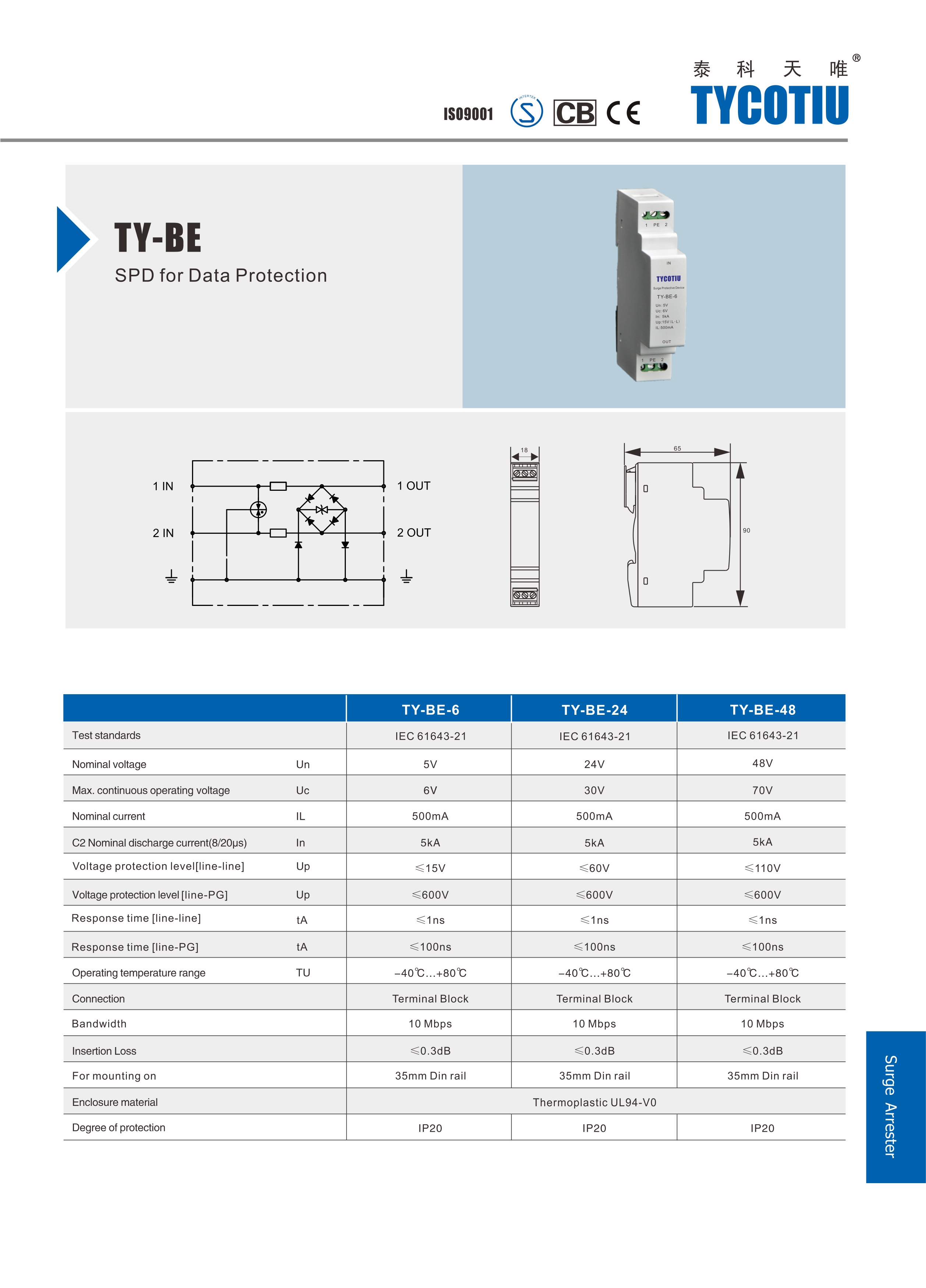

PDF DownloadFeatures:
Comply with IEC61643-21 standard
Nominal voltage Un:24V
C2 nominal discharge current:5kA(8/20μs)
Max. discharge current:10kA
Excellent transmission performance, low insertion loss

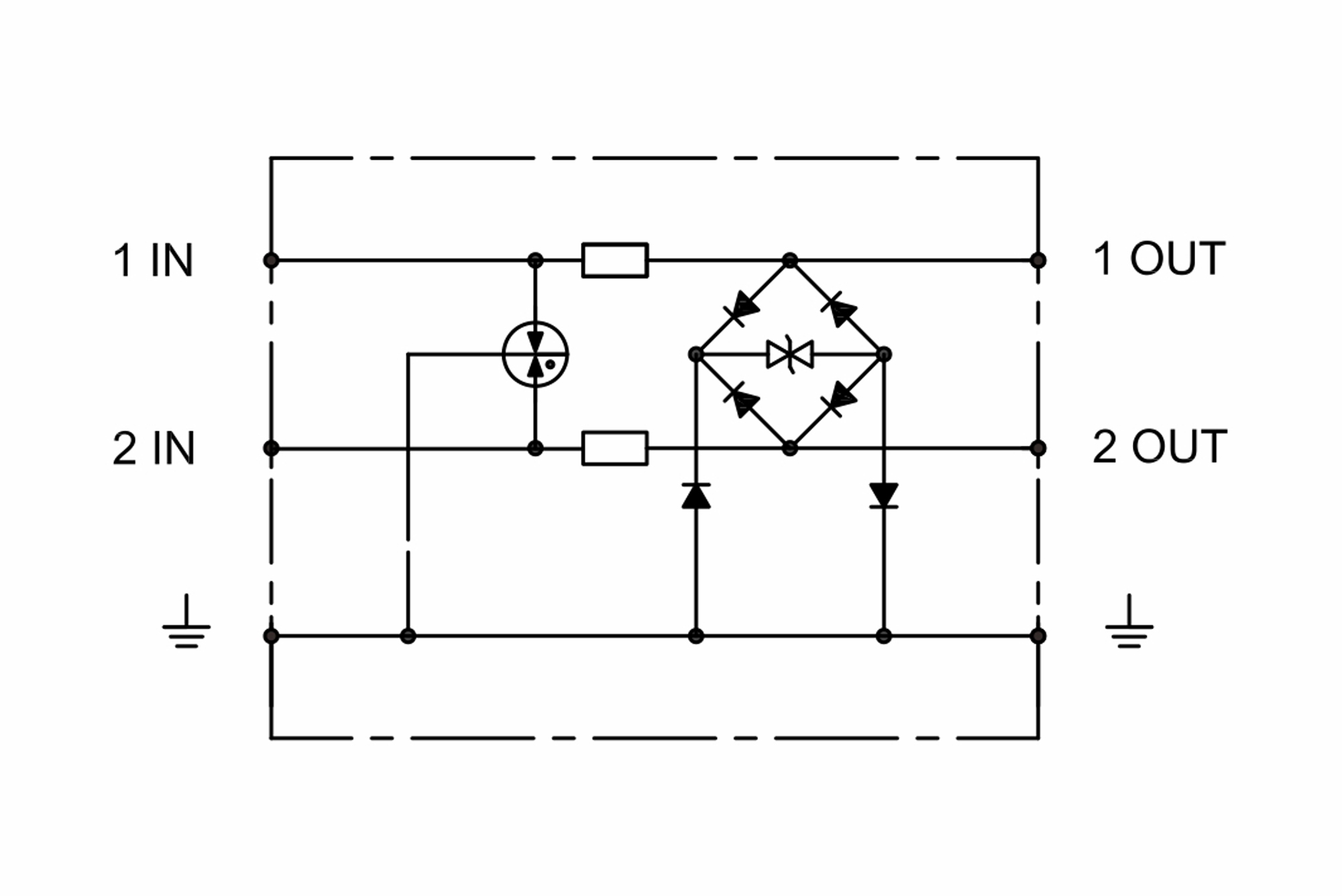

Protection: 2 lines
Parameters:
Model
TY-BE-24
Test standard
IEC 61643-21
Nominal voltage
Un
24V
Max. continuous operating voltage
Uc
30V
Nominal current
IL
500mA
Voltage protection level[line-line]
Up
≤60V
Response time[line-line]
tA
≤1ns
Operating temperature range
Tu
-40℃-80℃
Connection
Terminal Block
Bandwidth
10 Mbps
Insertion loss
≤0.3dB

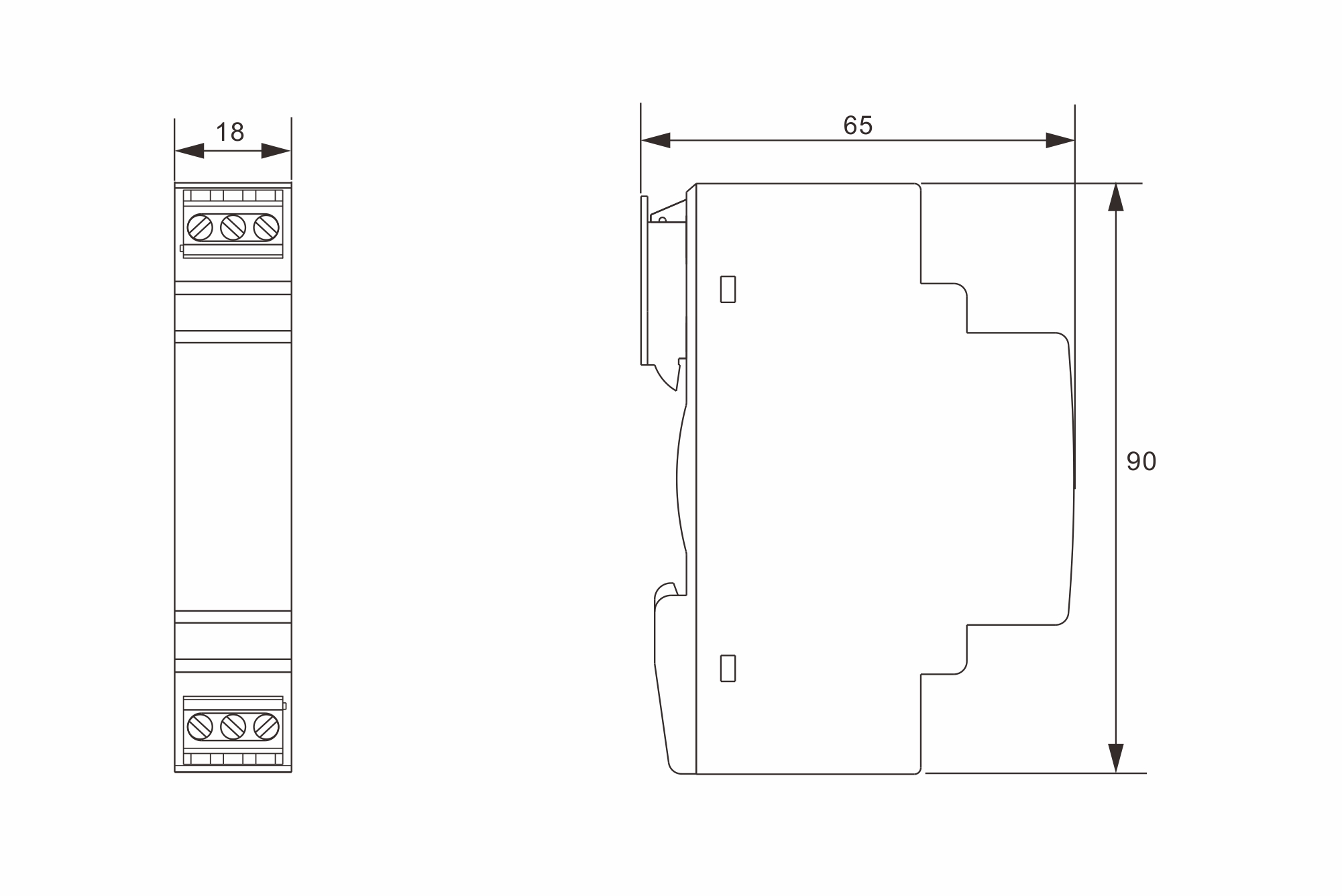

For mounting on
35mm Din rail
Enclosure material
Thermoplastic UL94-V0
Degree of protection
IP20
C2 Nominal discharge current (8/20μs)
In
5kA
Voltage protection level[line-PG]
Up
≤600V
Response time[line-PG]
tA
≤100ns
Application:
It is mainly used for lightning protection of AIAO signal line with 4~20mA
Prevent surges from intruding into equipment along signal lines
Widely used in industrial control systems
Installation and Maintenance:
Standard din rail installation
In series in the signal systems
Connected by marked port
