TYPN-12
Category:TYPN series signal lightning protector
RS485/232 Signal Lightning Protection Device
Tel:+86-577-62605321
Email:andy.xu@tycotiu.com
PDF Download
Features:
Comply with IEC61643-21 standard
Nominal voltage Un：12V
Max. discharge current Imax: 20kA
insertion loss：＜1dB
Excellent transmission performance
It is composed of a pluggable module and a fixed base
Connection: screw

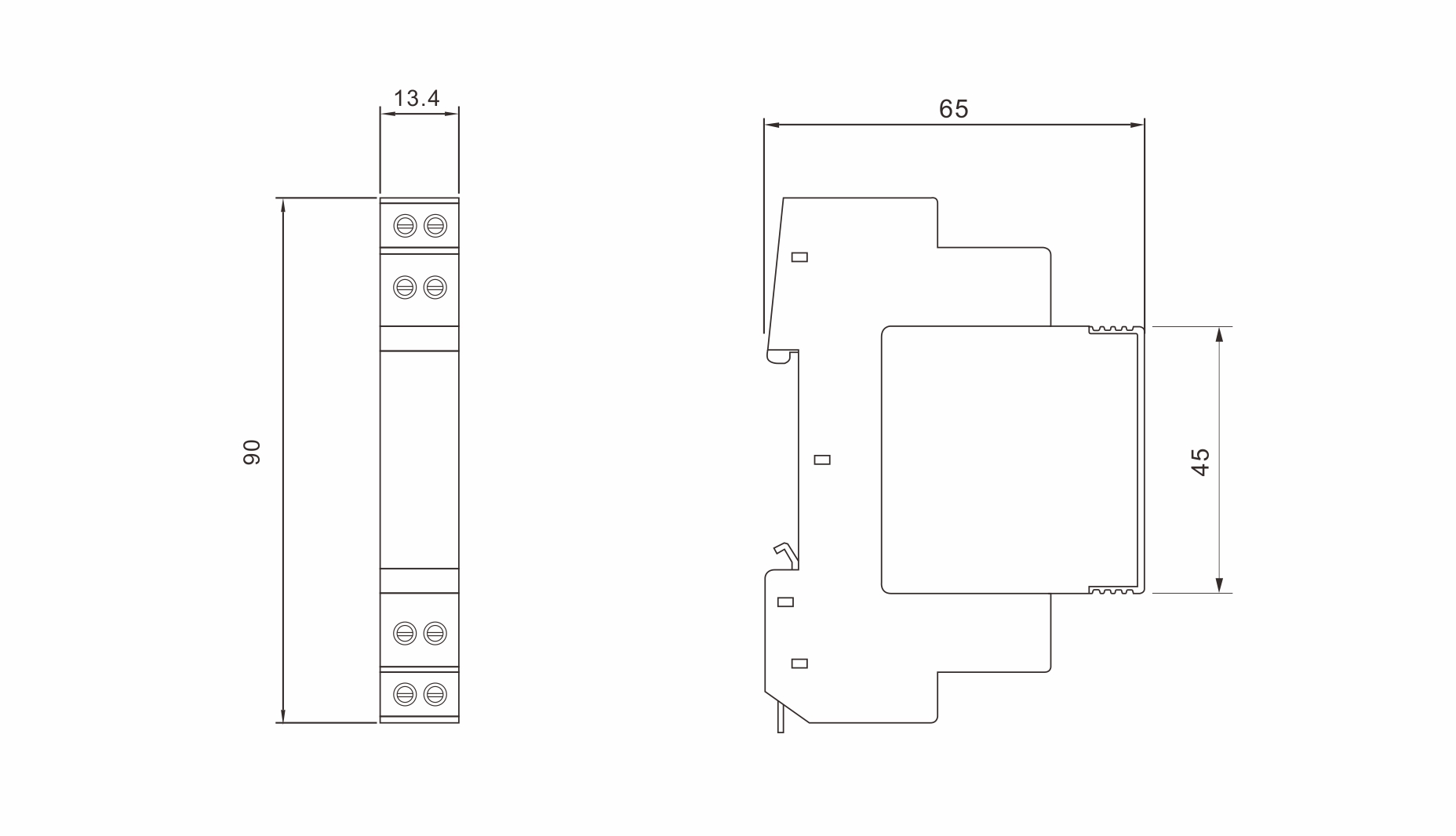

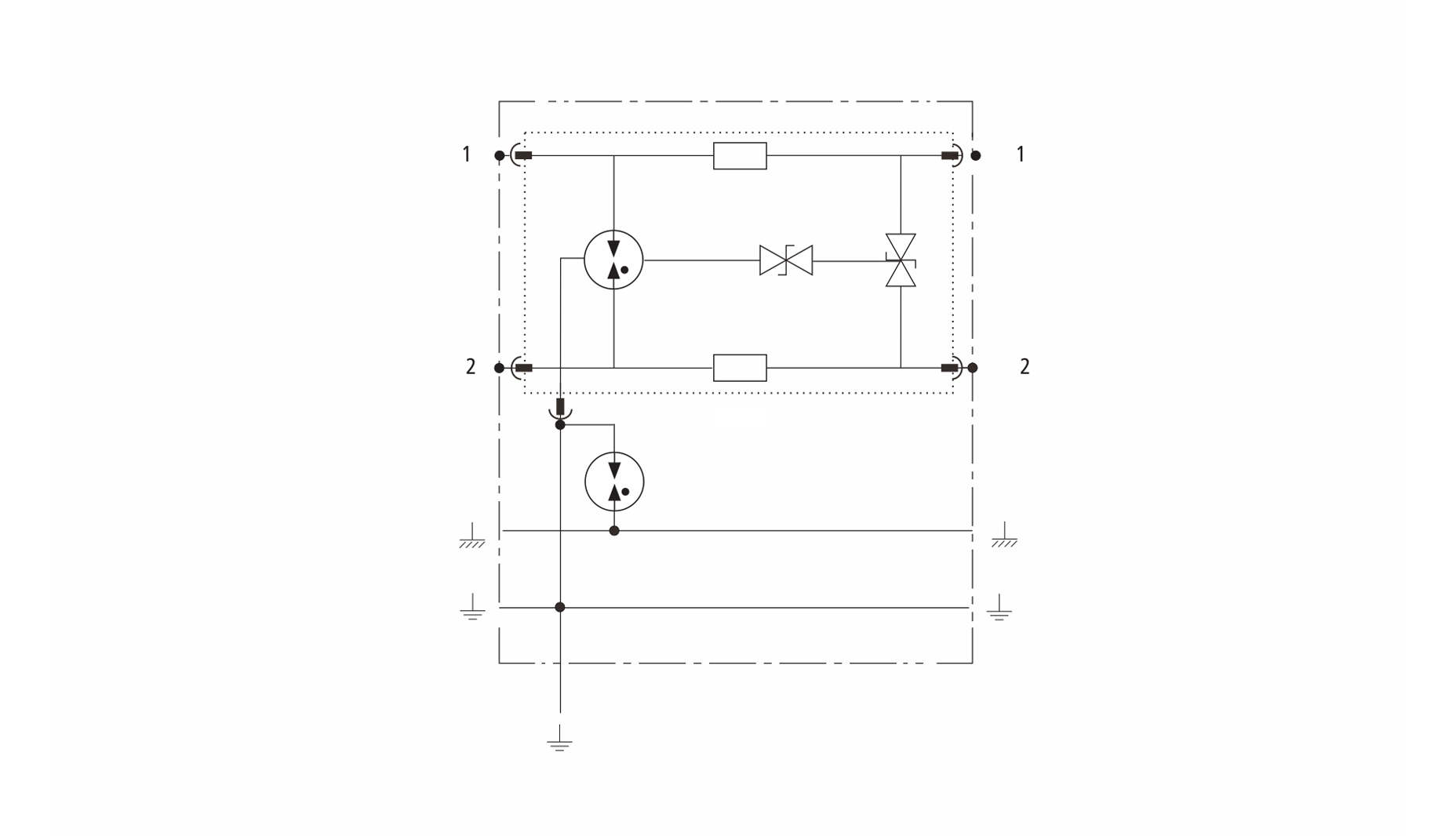

Parameters:
Model
TYPN-12
Test standard
IEC 61643-21
Rated operational voltage
Un
12V
Max. continuous operating voltage
Uc
15V
Nominal current
IL
300mA
C2 Max.discharge current (8/20μs)
Imax
20kA
Max. frequency
f max
＞3 MHz
Operating temperature range
Tu
-40℃-80℃
Connection
Screw terminal
Insertion loss
≤1 dB
For mounting on
35mm Din rail
Enclosure material
Thermoplastic UL94-V0
Degree of protection
IP20
Application
RS232, RS485
Structure
1-pair+shielded
C2 Nominal discharge current (8/20μs)
In
5kA
Voltage protection level [line-line]
Up
≤30V
Voltage protection level [line-PG]
Up
≤600V
Failsafe behavior
Short-circuit
Application:
Protect industrial fieldbus, telephone lines, signal and data lines, etc.
Widely used in RS485/232 signal line lightning protection
Prevent surge to invade equipment along the signal line and cause equipment damage
Installation and Maintenance:
35mm standard din rail installation
The connection mode is series
Connect the output terminal (OUT) to a protected device, do not connect in reverse
Get as close to the protected device as possible
After installation, check the wiring is correct and firm, then the power can be connected and put into use
