TYBD-4L-6
Category:Digital signal lightning protector
Digital Signal Lightning Protector 5V
Tel:+86-577-62605321
Email:andy.xu@chtaike.com.cn
PDF Download
Features:
Comply with IEC61643-21 standard
Nominal voltage Un：5V
C2 nominal discharge current (8/20us) per line 10kA
Protection level：IP20
Din rail installation, easy to operate
High degree of protection for four single lines
Parameters:
Model
TYBD-4L-6
Test standard
IEC 61643-21
Nominal voltage
Un
5V
Max. continuous operating voltage
Uc
6VDC / 4.2V AC
Nominal current
IL
1A
Voltage protection level line-line for In C2
Up
≤15V
Cut-off frequency line-PG
fG
1.0 MHz
Operating temperature range
Tu
-40℃-80℃

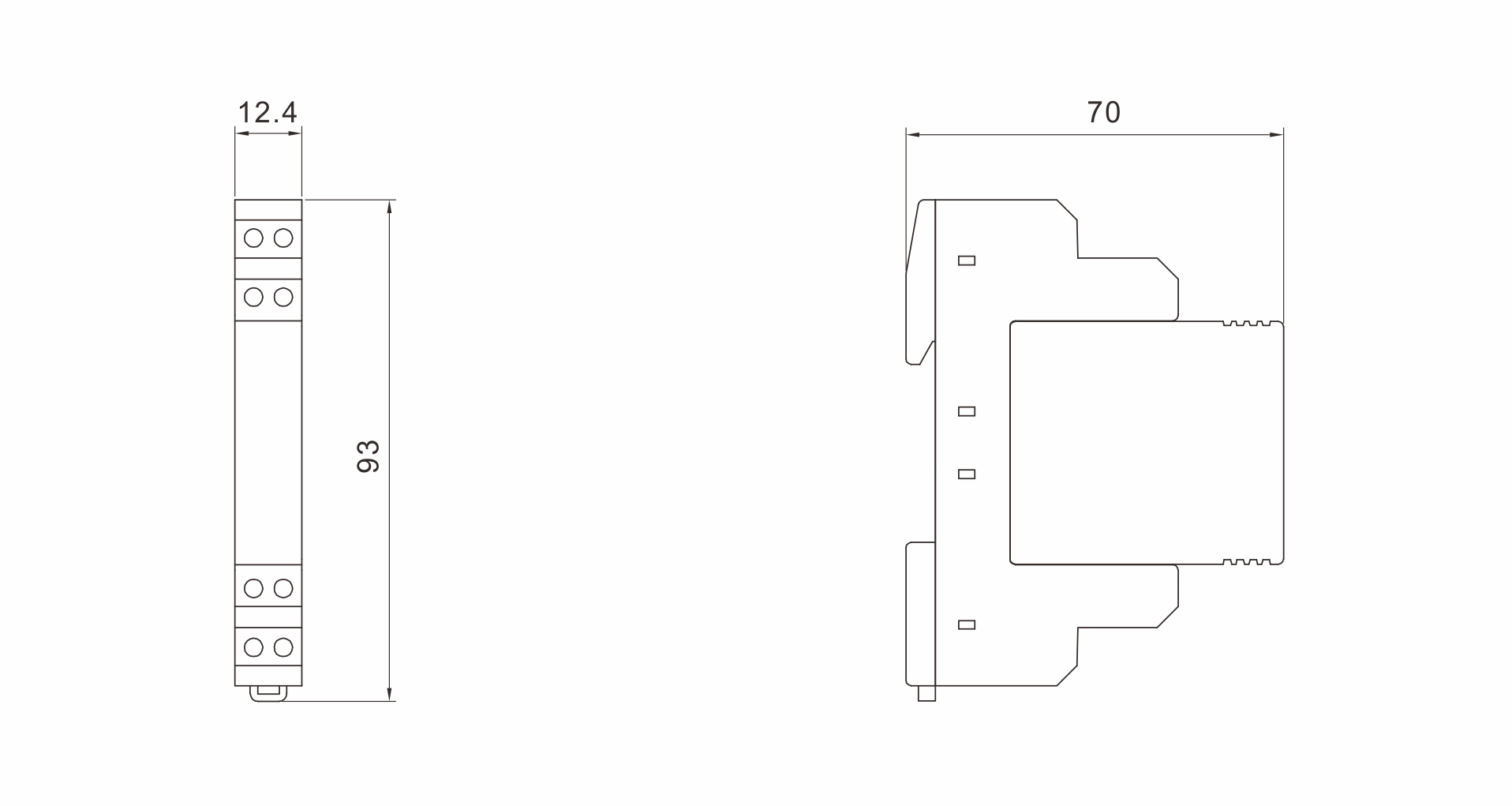

For mounting on
35mm Din rail
Enclosure material
PA 6.6
Degree of protection
IP20
SPD class
TYPE2 P1
C2 Total nominal discharge current (8/20μs)
In
20kA
C2 Nominal discharge current (8/20μs) per line
In
10kA
Voltage protection level line-PG for In C2
Up
≤600V
Voltage protection level line-line at 1kV/μs C3
Up
≤9V
Voltage protection level line-PG at 1kV/μs C3
Up
≤550V
Series impedance per line
1 Ohm
Capacitance line-line
C
≤5.4 nF
Capacitance line-PG
C
≤16 pF
Application:
Effectively protects all kinds of equipment from the damage caused by inductive lightning and surges from signal transmission lines
It is mainly used for lightning protection of communication signal transmission line (digital signal transmission line) and its equipment

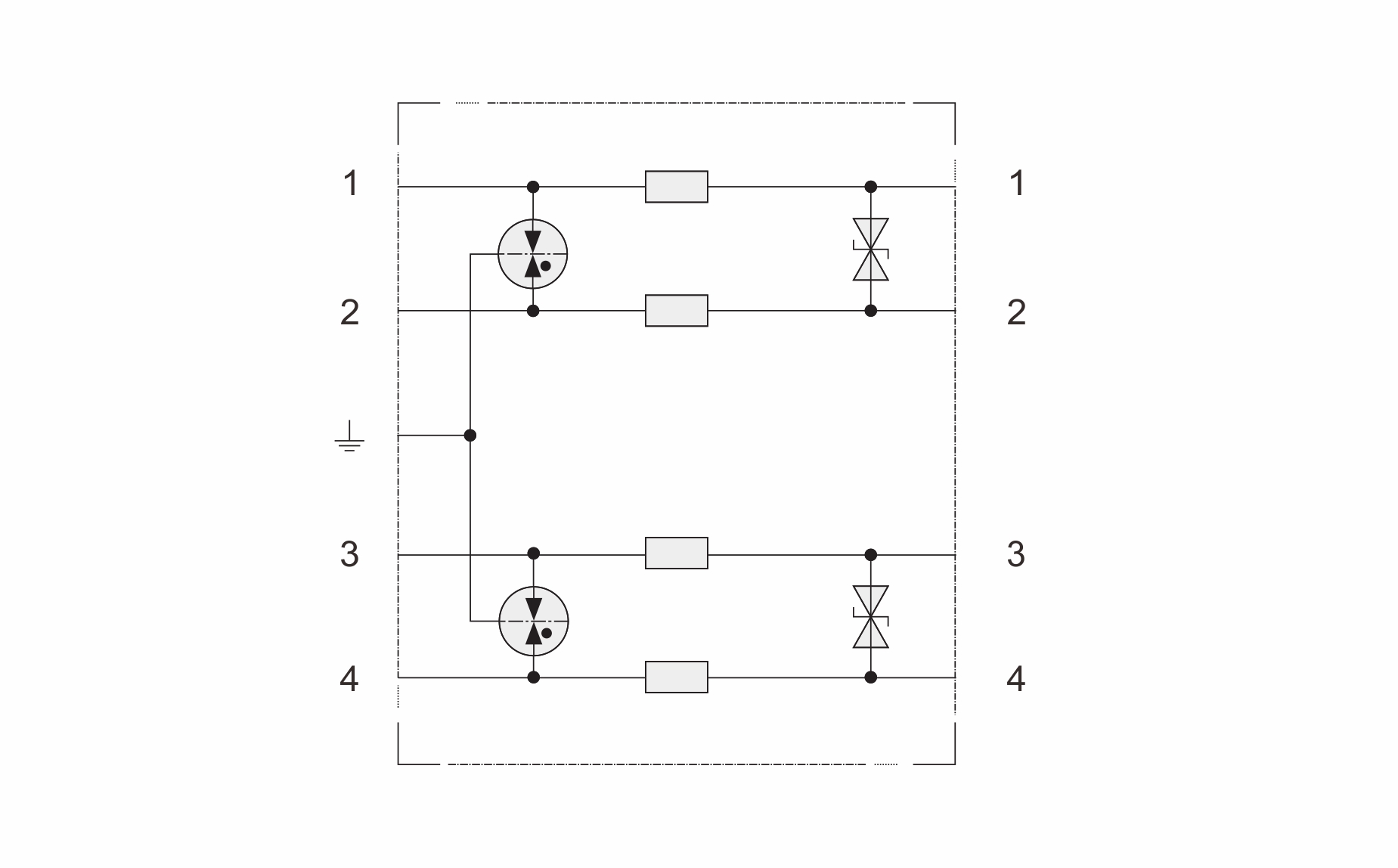

Installation and Maintenance:
35mm standard din rail installation
The connection mode is series
Get as close to the protected equipment as possible
After installed, check the wiring is correct and firm, then the power can be connected and put into use.
