TYRJ45H-8L
Category:RJ45 SPD for Ethernet
1 port 8 line RJ45 Network Lightning Protector
Tel:+86-577-62605321
Email:andy.xu@tycotiu.com
PDF Download
Features:
Comply with IEC61643-21 standard
Nominal voltage Un：5V
C2 Nominal discharge current (8/20μs) per line 1.5kA
Protection level：IP20
Insertion loss：≤0.3dB
Low protection voltage level, quick response

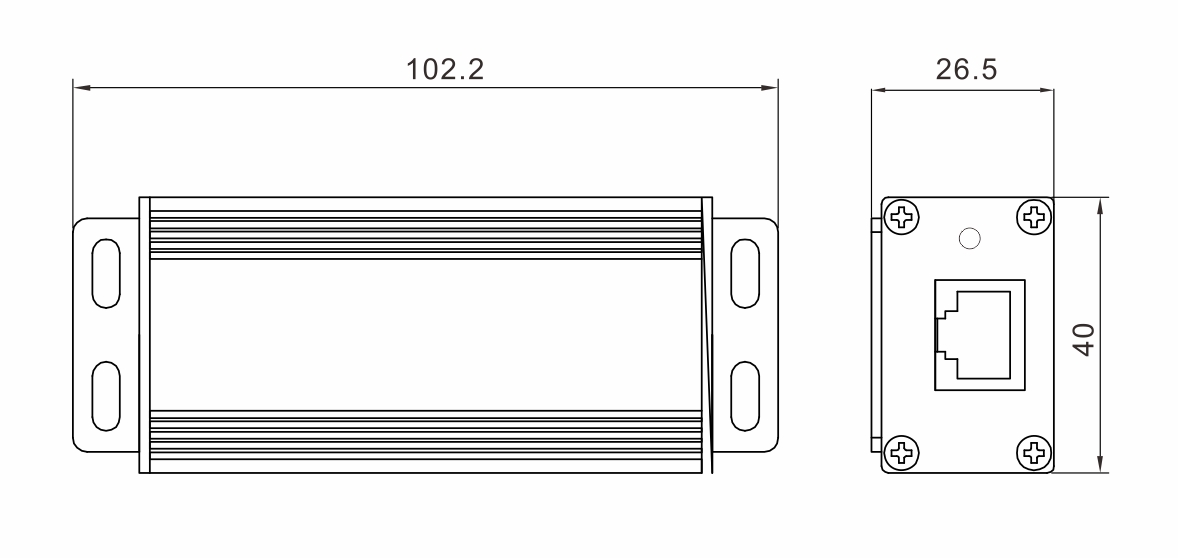

Parameters:
|
Model |
|
TYRJ45H-8L |
|
Test standard |
|
IEC 61643-21 |
|
Nominal voltage |
Un |
5V |
|
Max. continuous operating voltage |
Uc |
6VDC / 4V AC |
|
Nominal current |
IL |
0.5A |
|
D1 Lightning impulse current (10/350 μs) per line |
Iimp |
0.5kA |
|
C2 Nominal discharge current (8/20μs) per line |
In |
1.5kA |
|
Voltage protection level [line-line] @200A |
Up |
≤30V |
|
Voltage protection level [line-PG] @1.5kA |
Up |
≤500V |
|
Voltage protection level line-line at 1 kV/μs C3 |
Up |
≤180V |
|
Voltage protection level line-PG at 1 kV/μs C3 |
Up |
≤500V |
| Response time [line-line] | tA |
≤1ns |
|
Response time [line-PG] |
tA |
≤100ns |
|
Operating temperature range |
Tu |
-40℃-80℃ |
|
Connection input / output |
|
RJ45 1 port 8 line |
| Bandwidth |
|
300 Mbps |
| Insertion loss |
|
≤0.3dB |
|
Enclosure material |
|
aluminium alloy |
|
Degree of protection |
|
IP20 |
Application:
Protect Ethernet 100BASE-T/TX, LAN, 10BESE-T (IEEE 802.5) equipment from the damage caused by inductive lightning stroke, surge voltage, electrostatic interference, imperfect earth or radiation interference etc.
Installation and Maintenance:
This product is in series at the input end of the protected equipment
The input end of the surge arrester is connected with the signal channel, and the output end is connected with the input end of the protected equipment. If it is connected in reverse, it has no effect on the post-level protection.
The lightning protection grounding wire of the product should be directly connected with the lightning protection grounding wire of the machine room
This product does not need special maintenance, when the system work failure, the product can be removed and then checked, if the work after the removal of normal should be replaced with a new surge arrester.
