TYRJ45L-4L
Category:RJ45 SPD for Ethernet
1 port 4 line RJ45 Network Lightning Protector
Tel:+86-577-62605321
Email:andy.xu@tycotiu.com
PDF Download
Features:
Comply with IEC61643-21 standard
Nominal voltage Un：5V
C2 Nominal discharge current (8/20μs) per line 1.5kA
Protection level：IP20
Insertion loss：≤0.3dB
Low protection voltage level, quick response

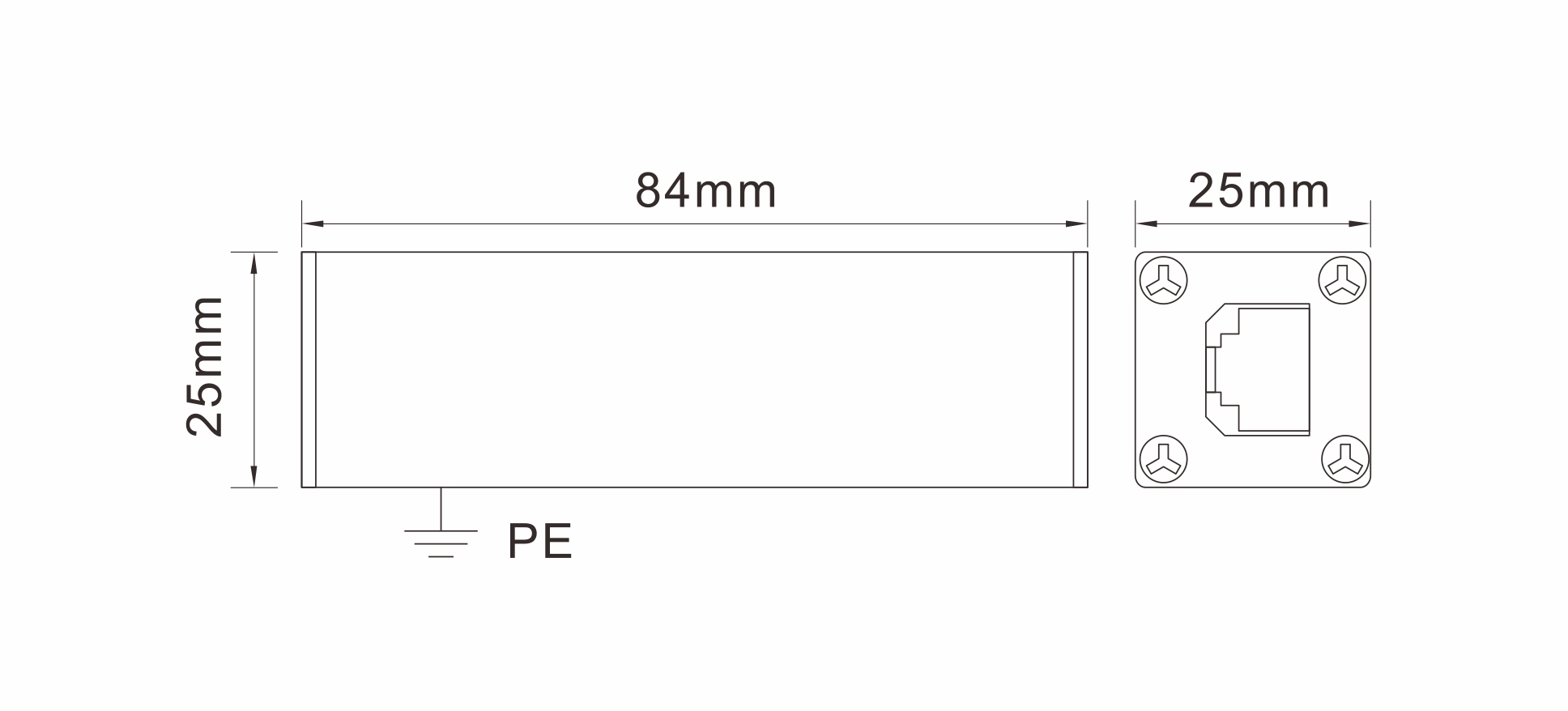

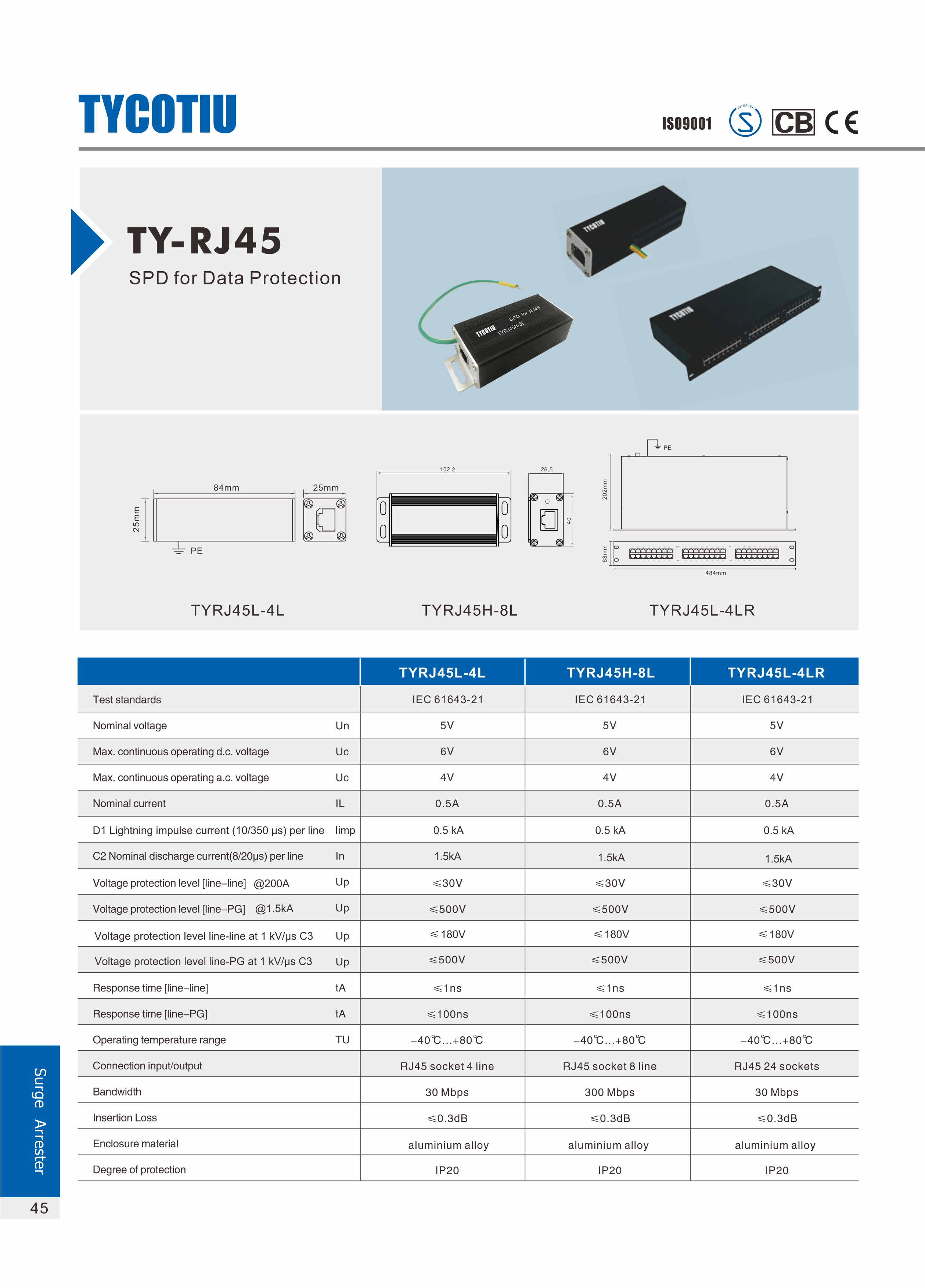

Parameters:
Model
TYRJ45L-4L
Test standard
IEC 61643-21
Nominal voltage
Un
5V
Max. continuous operating voltage
Uc
6VDC / 4V AC
Nominal current
IL
0.5A
Voltage protection level [line-line] @200A
Up
≤30V
Operating temperature range
Tu
-40℃-80℃
Connection input / output
RJ45 1 port 4 line
Enclosure material
aluminium alloy
Degree of protection
IP20
D1 Lightning impulse current (10/350 μs) per line
Iimp
0.5kA
C2 Nominal discharge current (8/20μs) per line
In
1.5kA
Voltage protection level [line-PG] @1.5kA
Up
≤500V
Voltage protection level line-line at 1 kV/μs C3
Up
≤180V
Voltage protection level line-PG at 1 kV/μs C3
Up
≤500V
Response time [line-line]
tA
≤1ns
Response time [line-PG]
tA
≤100ns
Bandwidth
30 Mbps
Insertion loss
≤0.3dB
Application:
Protect Ethernet 100BASE-T/TX, LAN, 10BESE-T (IEEE 802.5) equipment from the damage caused by inductive lightning stroke, surge voltage, electrostatic interference, imperfect earth or radiation interference etc.
Installation and Maintenance:
This product is in series at the input end of the protected equipment
The input end of the surge arrester is connected with the signal channel, and the output end is connected with the input end of the protected equipment. If it is connected in reverse, it has no effect on the post-level protection.
The lightning protection grounding wire of the product should be directly connected with the lightning protection grounding wire of the machine room
This product does not need special maintenance, when the system work failure, the product can be removed and then checked, if the work after the removal of normal should be replaced with a new surge arrester.
