TY-BNC-R
Category:SPD for coaxial
24 Channel Video Lightning Protection Device
Tel:+86-577-62605321
Email:andy.xu@chtaike.com.cn
PDF Download
Features:
Comply with IEC61643-21 standard
Nominal voltage Un：5V
Two-port two-stage surge protection
Protection level：IP20
Insertion loss：≤0.3dB
Connection：BNC
Protection line：24 line
Parameters:
Model
TY-BNC-R
Test standard
IEC 61643-21
Nominal voltage
Un
5V
Max. continuous operating voltage
Uc
6VDC / 4V AC
Nominal current
IL
0.5A
Voltage protection level [line-shield]
Up
≤30V
Operating temperature range
Tu
-40℃-80℃

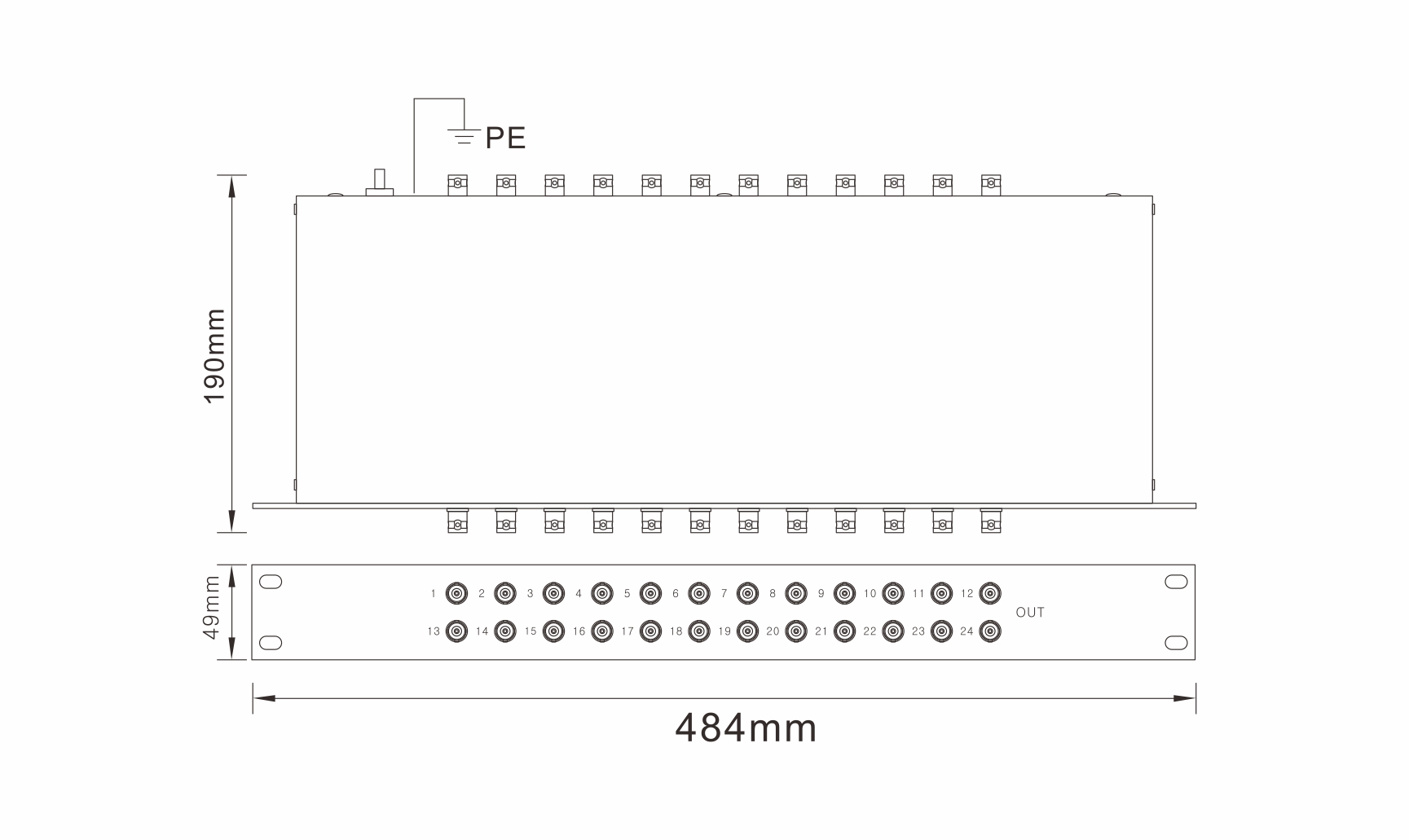

Connection input / output
BNC 24 sockets
Enclosure material
aluminium alloy
Degree of protection
IP20
C2 Nominal discharge current (8/20μs)[line-shield]
In
5kA
C2 Nominal discharge current (8/20μs)[shield-PG]
In
10kA
Voltage protection level [shield-PG]
Up
≤500V
Response time [line-shield]
tA
≤1ns
Response time [shield-PG]
tA
≤100ns
Bandwidth
10 Mbps
Insertion loss
≤0.3dB
Impedience
50Ω
Application:
It is suitable for cable TV, public TV, satellite TV receiving, monitoring system, video on demand system and other coaxial communication equipment.
Specialized for equipment surge protection
Installation and Maintenance:
This product is in series at the input end of the protected device
The input end of the surge arrester is connected with the signal channel, and the output end is connected with the input end of the protected device.
This product does not need special maintenance, when the system work failure, the product can be removed and then checked, if the work after the removal of normal should be replaced with a new surge arrester.
