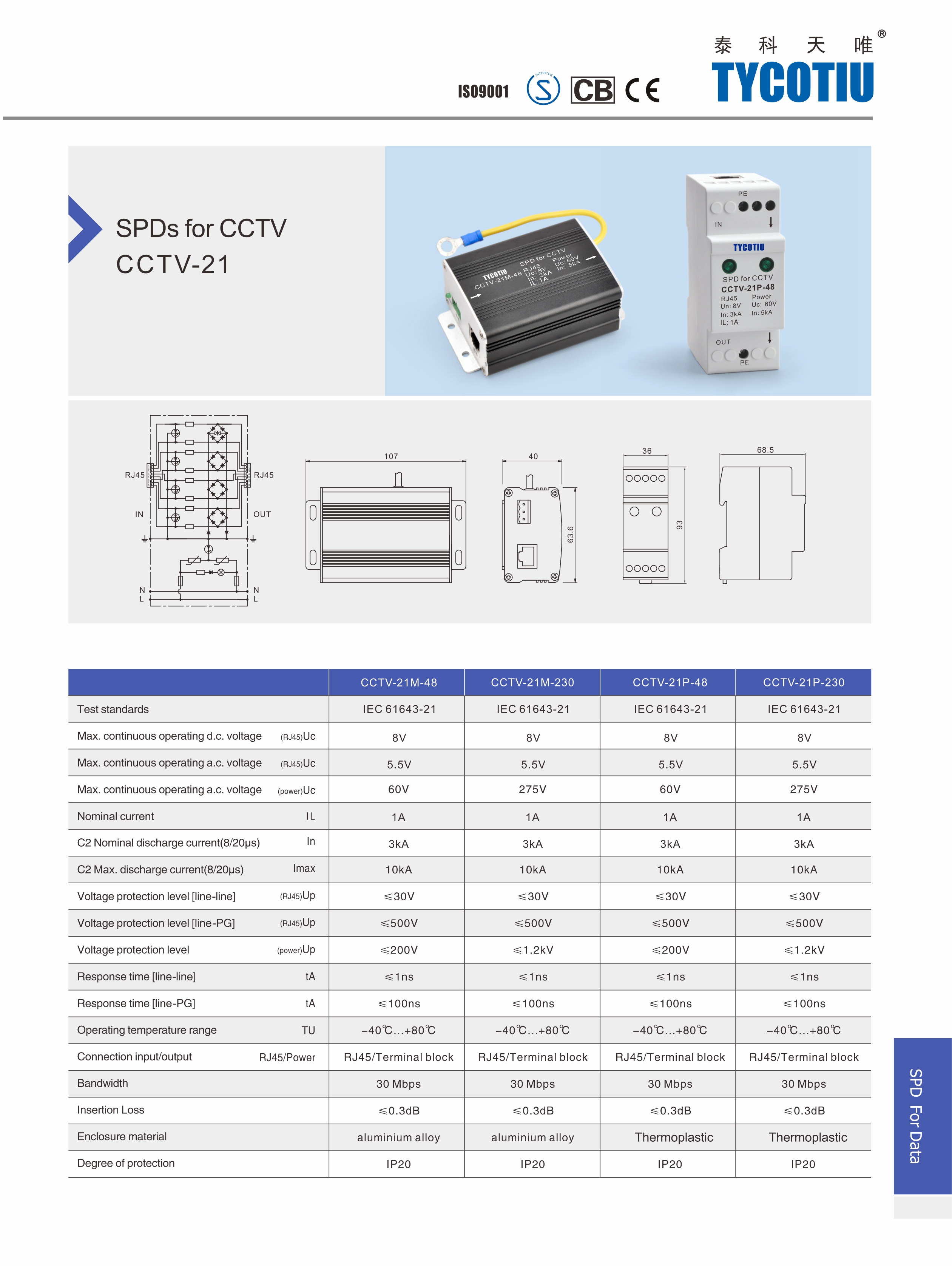

CCTV-21P-230
Category:SPD for CCTV
Din Rail Network 2-in-1 SPD
Tel:+86-577-62605321
Email:andy.xu@chtaike.com.cn
PDF Download
Features:
Comply with IEC61643-21 and GB/T18802.21 standard
Din rail installation
Max. discharge current: 10kA
Excellent signal transmission performance
Insertion loss: ≤0.3dB
Connectiion(Power/RJ45): Terminal block/RJ45
Multi-level protection, low voltage protection level, fast response time
Parameters:
Model
CCTV-21P-230
Test standards
IEC 61643-21
Max. continuous operating voltage
(power)Uc
275VAC
C2 Nominal discharge current (8/20μs)
In
5kA
Voltage protection level [line-line/shield]
(RJ45)Up
≤30V
Operating temperature range
Tu
-40℃-80℃
Connection input / output
RJ45/Power
RJ45/Terminal block
Enclosure material
Thermoplastic
Degree of protection
IP20
Max. continuous operating voltage
(RJ45)Uc
6VDC/4VAC
Nominal current
IL
0.5A
C2 Max. discharge current (8/20μs)
Imax
10kA
Voltage protection level [line/shield-PG]
(RJ45)Up
≤500V
Voltage protection level
(power)Up
≤1.2kV
Response time [line-line/shield]
tA
≤1ns
Response time [line/shield-PG]
tA
≤100ns
Bandwidth
30 Mbps
Insertion loss
≤0.3dB
Application:
It is suitable for monitoring system front-end network camera, wireless remote control camera power line, network line lightning surge protection, so that it can avoid damage caused by over-voltage induction, over-voltage operation and electrostatic discharge.
Mainly used for surge protection of various video surveillance cameras
Installation and Maintenance:
Installed in series between the protected equipment and power line.
Before connecting the protector to the system, check the grounding resistance of the ground network.
The output end is connected with the protected equipment, which can not be connected in reverse.
After installation and wiring, check that the wiring is correct and firm, then switch on the power supply and put into use.
Users are not allowed to disassemble the fasteners in each part of the protector, so as not to cause damage and affect the normal operation
