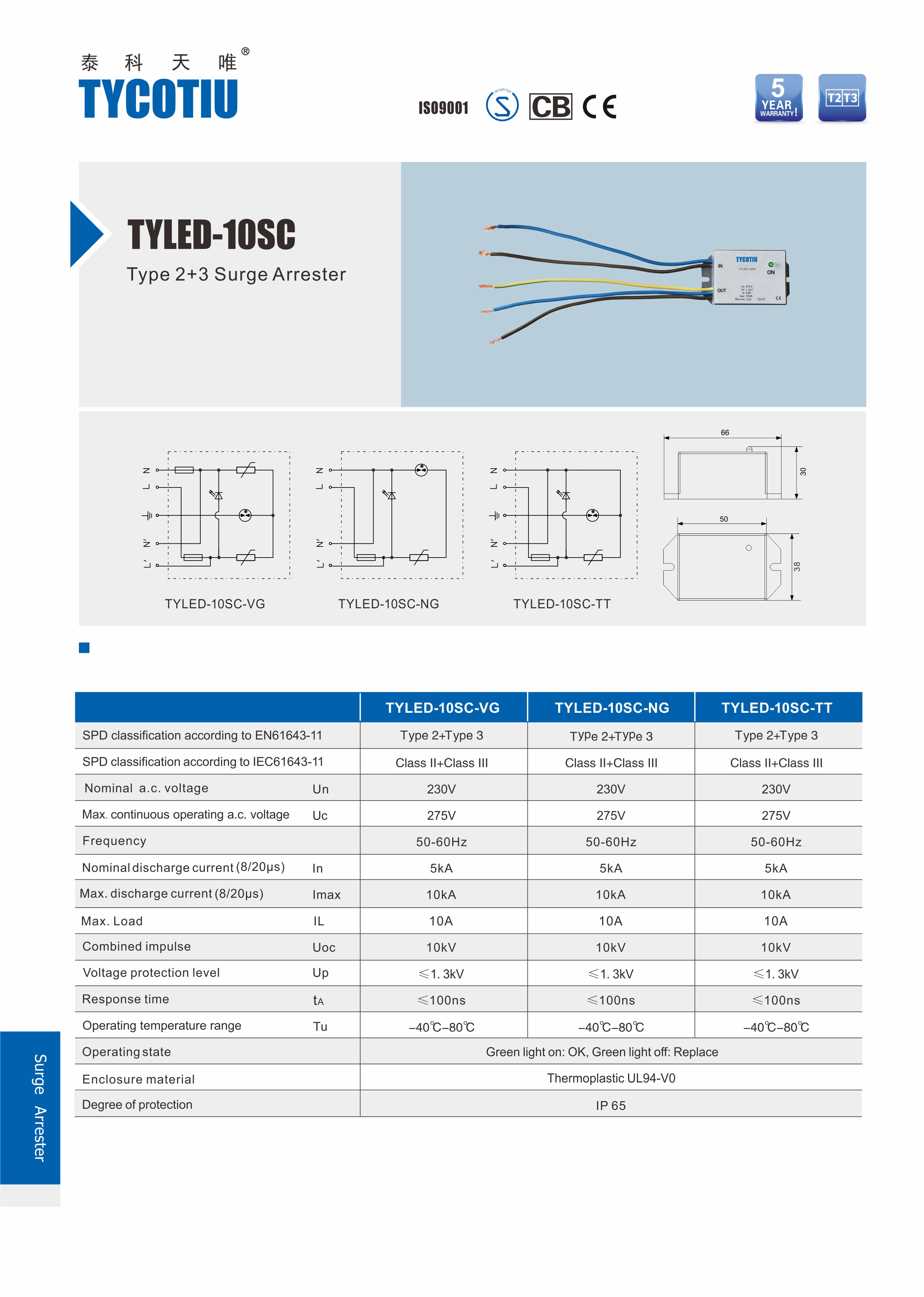

TYLED-10SC
Category:SPD for LED
10kA LED street light surge protector
Tel:+86-577-62605321
Email:andy.xu@tycotiu.com
PDF Download
Features:
Good lightning protection performance, safety performance and special structure, which can meet the lightning protection requirements of LED power system.
IP65 protection grade
Type 2+3 surge protector
High capacity, low residual voltage, fast response time
Parameters:
Model
TYLED-10SC-VG
SPD classification according to EN61643-11
Type 2+3
SPD classification according to IEC61643-11
Class II+III
Max. continuous operating a.c. voltage
Uc
275V
Nominal discharge current(8/20μs)
In
5kA
Max. discharge current(8/20μs)
Imax
10kA
Voltage protection level
Up
≤1.3kV
Response time
tA
≤100ns
Operating temperature range
Tu
-40℃-80℃
Operating state / fault indication
Green light on: OK, Green light off: Replace
Degree of protection
IP65
TYLED-10SC-NG
TYLED-10SC-TT
Type 2+3
Type 2+3
Class II+III
Class II+III
Nominal a.c. voltage
Un
230V
230V
230V
275V
275V
Frequency
50-60Hz
50-60Hz
50-60Hz
5kA
5kA
10kA
10kA
Nominal current
IL
10A
10A
10A
Combined impulse
Uoc
10kV
10kV
10kV
≤1.3kV
≤1.3kV
≤100ns
≤100ns
-40℃-80℃
-40℃-80℃
IP65
IP65
Application:
Used for lightning protection of LED street light equipment
Mainly used in LED lighting system instantaneous over voltage, over current surge protection

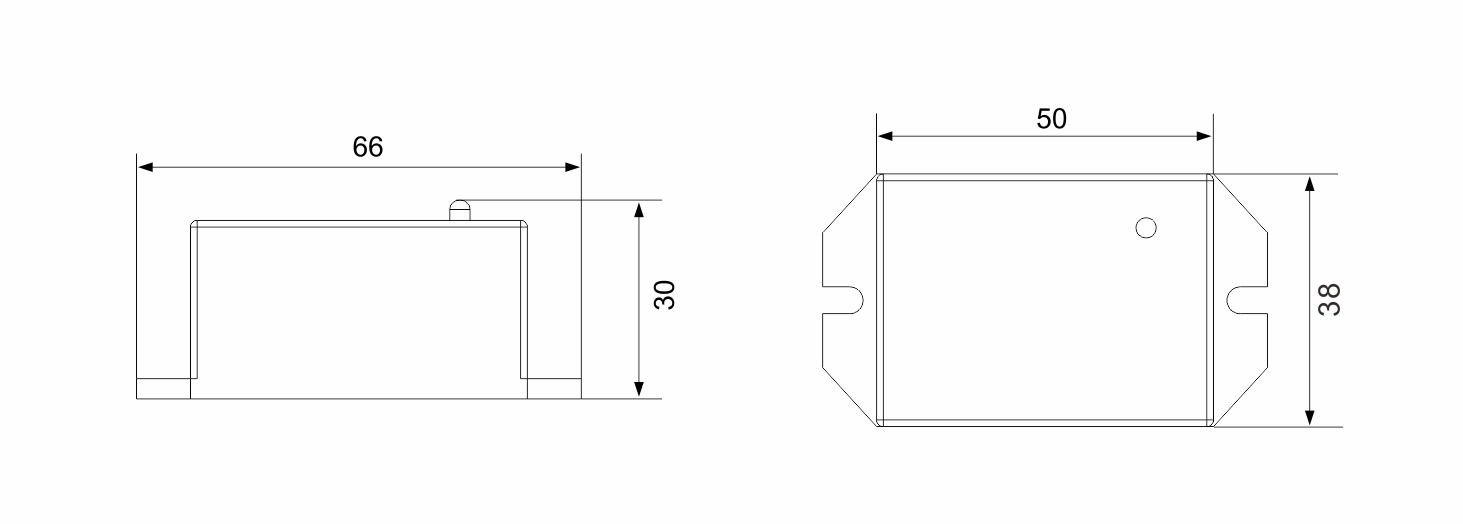

Installation and Maintenance:
Parallel connection
Before installation, cut off the power supply.

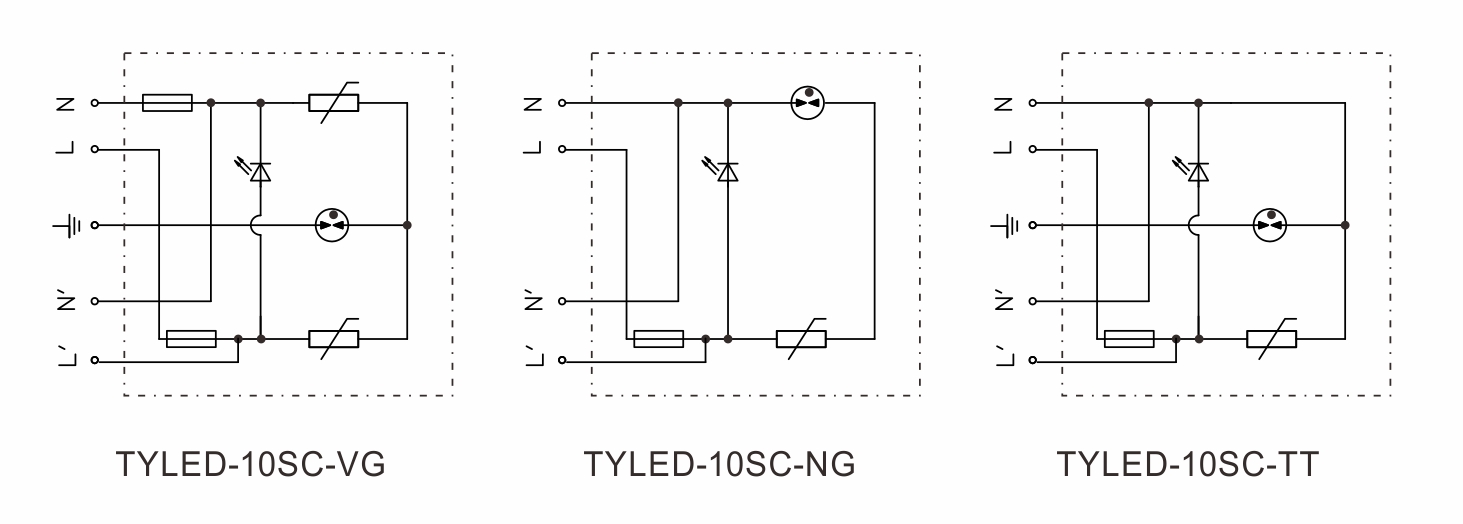

Please connect according to the installation diagram
During the use of the lightning protection device, it is necessary to regularly check whether the working indicator is normal. If the indicator fails, it should be repaired or replaced in time.
