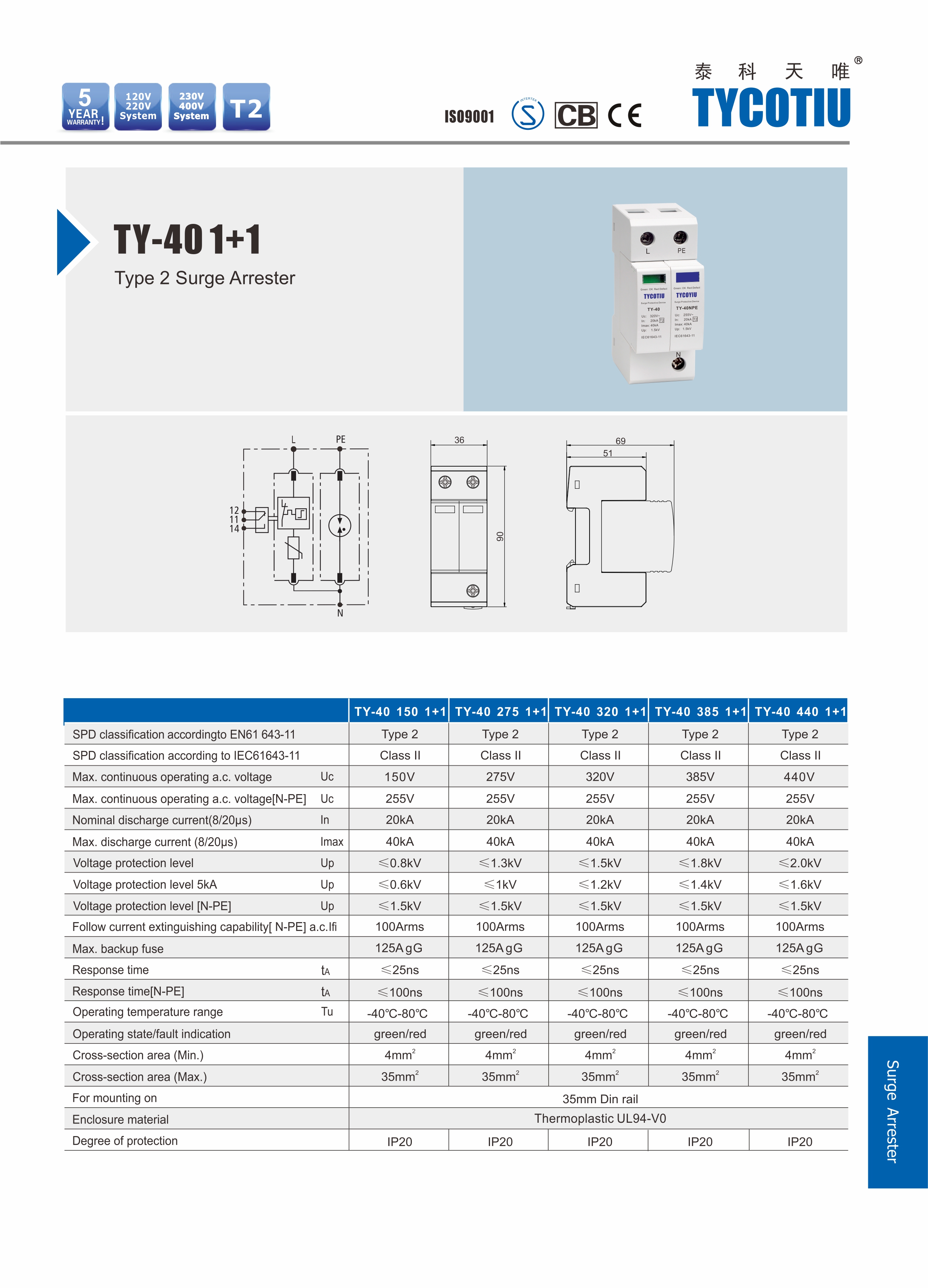

TY-40 1+1
Category:T2 surge protector（8/20µs）
40kA Single-phase Power Lightning Protection Device 1+1
Tel:+86-577-62605321
Email:andy.xu@tycotiu.com
PDF Download
Features:
Type 2 surge protection
Compact design
Nominal discharge current In(8/20μs)：20kA
Max. discharge current Imax(8/20μs)：40kA
Max. continuous operating voltage Uc：385VAC (If need other voltage, please contact us)

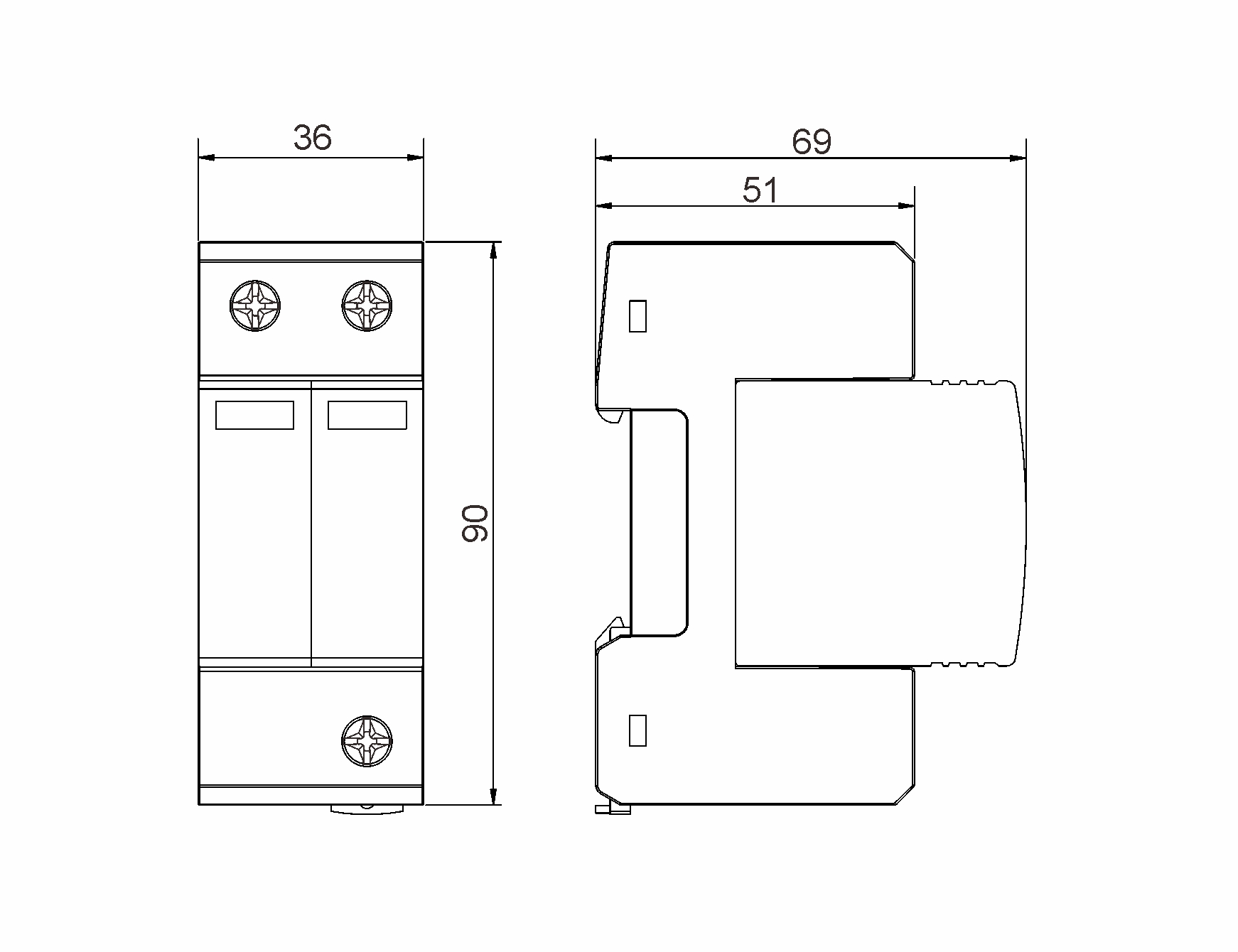

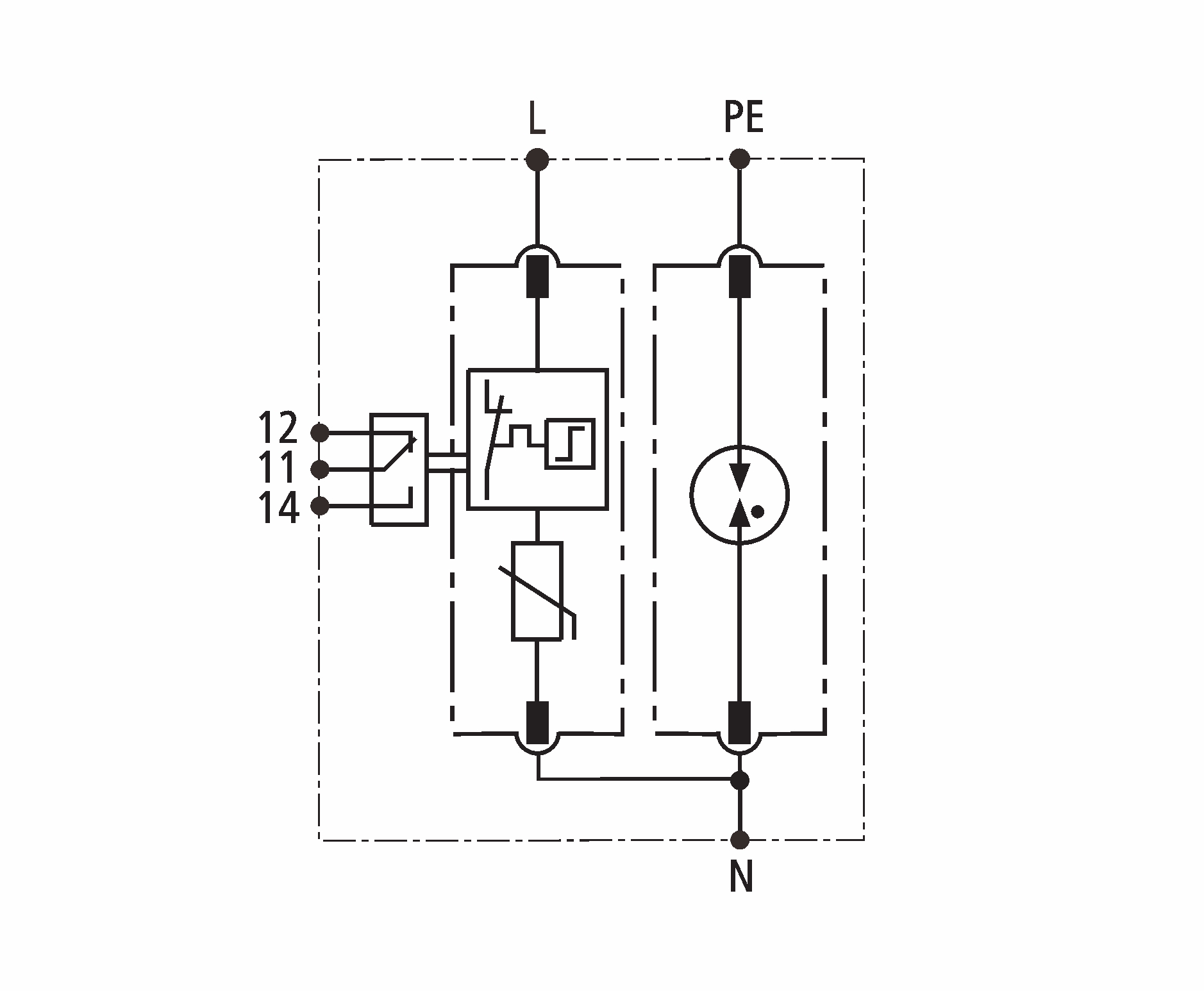

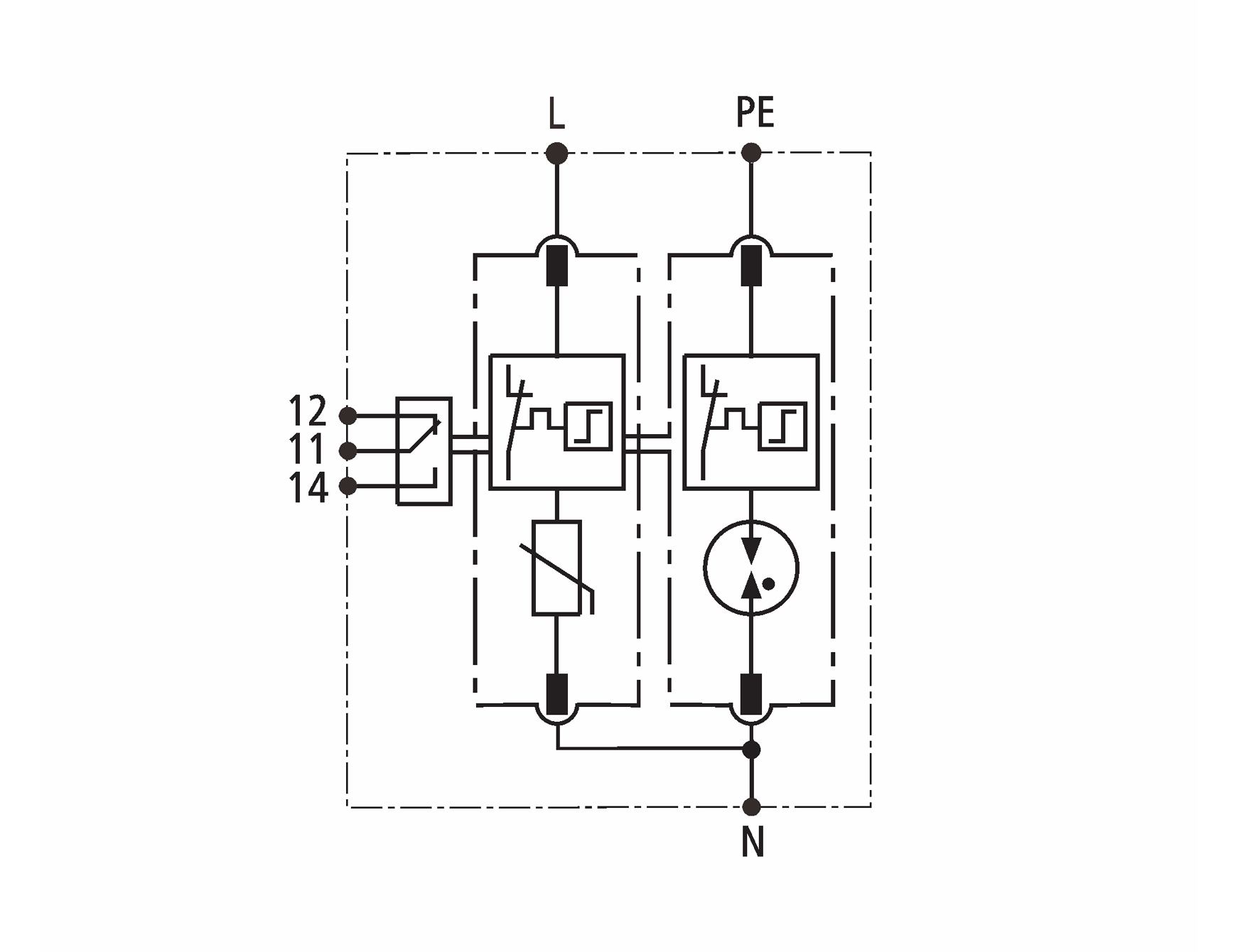

Pole number：1P+NPE
It is composed of a basic component and 4 plug-in protection modules
Comply with IEC 61643-11
Low residual current, fast response
Status indicator window, normal green, red indicates product failure
Remote signaling is optional
Parameters:
Model
TY-40
150 1+1
TY-40
275 1+1
TY-40
320 1+1
TY-40
385 1+1
TY-40
440 1+1
SPD classification according to EN61643-11
Type 2
SPD classification according to IEC61643-11
Class II
Max. continuous operating a.c. voltage
Uc
385V
Max. continuous operating a.c. voltage[N-PE]
Uc
255V
Nominal discharge current(8/20μs)
In
20kA
Max. discharge current(8/20μs)
Imax
40kA
Voltage protection level
Up
≤1.8kV
Voltage protection level 5kA
Up
≤1.4kV
Voltage protection level[N-PE]
Up
≤1.5kV
Follow current extinguishing capability a.c. [ N-PE]
Ifi
100Arms
Max. backup fuse
125A gG
Response time
tA
≤25ns
Response time[N-PE]
tA
≤100ns
Operating temperature range
Tu
Operating state / fault indication
Cross-section area (Min.)
4mm²
Cross-section area (Max.)
35mm²
For mounting on
Enclosure material
Degree of protection
IP20
Type 2
Type 2
Type 2
Type 2
Class II
Class II
Class II
Class II
150V
275V
320V
440V
255V
255V
255V
255V
20kA
20kA
20kA
20kA
40kA
40kA
40kA
40kA
≤0.8kV
≤1.3kV
≤1.5kV
≤2.0kV
≤0.8kV
≤1.0kV
≤1.2kV
≤1.6kV
≤1.5kV
≤1.5kV
≤1.5kV
≤1.5kV
100Arms
100Arms
100Arms
100Arms
125A gG
125A gG
125A gG
125A gG
≤25ns
≤25ns
≤25ns
≤25ns
≤100ns
≤100ns
≤100ns
≤100ns
-40℃-80℃
green / red
4mm²
4mm²
4mm²
4mm²
35mm²
35mm²
35mm²
35mm²
35mm Din rail
Thermoplastic UL94-V0
IP20
IP20
IP20
IP20
Application:
It is suitable for the second level lightning protection of single-phase power system
Generally used in 1-2 boundary lightning protection area
Installation and Maintenance:
After installation, check whether the protection unit is inserted in place, close the circuit breaker (fuse) switch, and check whether the working state is normal.
When the fault indication window changes from green to red, please replace it as soon as possible.
